Product Description
|
Hom |
PERC |
|
Vaj huam sib luag Efficiency |
21.9% |
|
Cable & Connector |
4mm², EVO2 lossis EVO2 Tau tshaj |
|

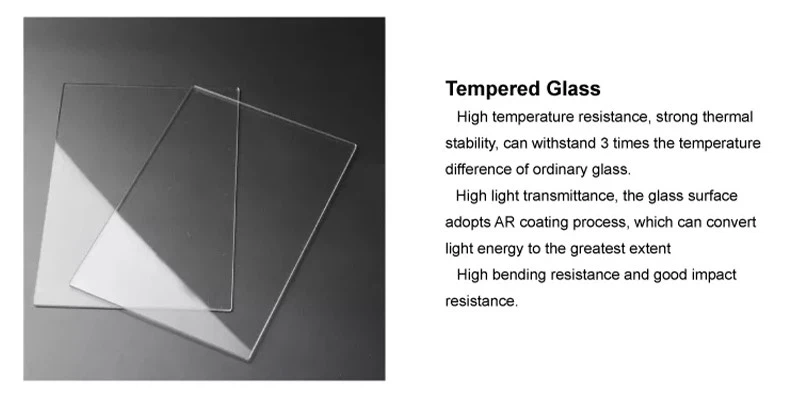

Pem hauv ntej iav |
2. |
|
Khob khob |
2. |
|
Vaj Huam Sib Luag Loj |
2384 ± 2mmx1096 ± 2mm × 35/30mm |
|

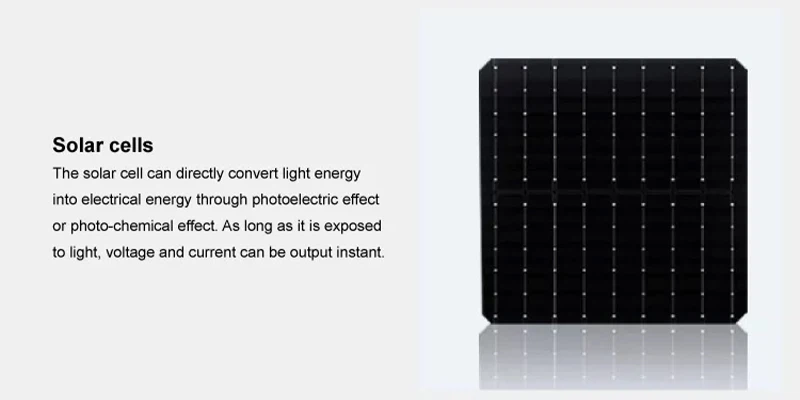

Solar Cell Loj |
Loj: 210 * 210mm |
|
Tsis muaj Cells |
132(6×22） |
|
Qhov hnyav |
38.7kg ± 3% |
|
Warranty |
30 xyoo |
|
Daim ntawv pov thawj |
TUV, CE, IEC, INMERTO, ISO |
|
Daim ntawv thov Class |
Chav Kawm A |
|
Ncej |
Anodized Aluminium Alloy |
|
Junction Box |
IP68, 3 Diodes |
|
Modules rau Pallet |
31/36 ib |
|
Module Rau 40HQ |
570/670 pcs |
Khoom Zoo
- Kev ua haujlwm siab:Jingsun 670W Hnub Ci Vaj Huam Sib Luag yog qhov ua tau zoo thiab tuaj yeem hloov mus txog 21.9% ntawm lub zog ntawm lub hnub mus rau hauv hluav taws xob. Qhov no ua rau nws yog ib qho zoo tshaj plaws hnub ci vaj huam sib luag ntawm kev ua lag luam niaj hnub no.
- Durability:Jingsun 670W Hnub Ci Vaj Huam Sib Luag yog tsim los ntawm cov ntaub ntawv zoo uas ua rau nws ruaj khov thiab kav ntev. Nws tuaj yeem tiv taus huab cua hnyav, suav nrog cua sov, txias, thiab nag.
- Ib qho yooj yim installation:Lub Hnub Ci Vaj Huam Sib Luag yog ib qho yooj yim rau nruab, thiab nws los nrog cov ncauj lus kom ntxaws uas ua rau cov txheej txheem yooj yim dua. Nws tuaj yeem ntsia tau rau txhua lub ru tsev, thiab cov txheej txheem installation yuav siv sij hawm me ntsis.
- Eco-Friendly:Siv Jingsun 670W Hnub Ci Vaj Huam Sib Luag yog ib txoj hauv kev zoo rau kev tsim hluav taws xob. Nws yog lub zog tauj dua tshiab uas tsis tso tawm cov pa phem hauv tsev cog khoom, ua rau nws yog qhov kev xaiv zoo rau cov neeg uas xav txo lawv cov pa roj carbon monoxide.
- Nqi-zoo:Thaum tus nqi pib ntawm lub Hnub Ci Vaj Huam Sib Luag tuaj yeem siab dua li cov khoom siv hluav taws xob ib txwm muaj, nws yog qhov kev xaiv zoo tshaj plaws nyob rau lub sijhawm ntev. Nws tsim hluav taws xob dawb, thiab kev txuag ntawm cov nqi hluav taws xob tuaj yeem ntxiv rau lub sijhawm. Tsis tas li ntawd, ntau lub tseem fwv muab kev txhawb nqa se rau cov neeg uas xaiv rau nruab hnub ci vaj huam sib luag ntawm lawv lub tsev lossis kev lag luam, ua rau kev nqis peev ntau dua.
Hluav taws xob Parameters ntawm STC
|
Lub zog siab tshaj plaws (Pmax) |
670W |
|
Lub zog siab tshaj plaws (Vmp) |
38.2V |
|
Maximum zog tam sim no (lmp) |
17.54A |
|
Qhib-Circuit Voltage (Voc) |
44.34V |
|
Luv-Circuit Current (lsc) |
18.62A |
|
Hwj chim Tolerance |
0~+5W |
|
Kub Coefficients ntawm lsc |
+0.042% degree |
|
Kub Coefficients ntawm Voc |
-0.262% degree |
|
Kub Coefficients ntawm Pmax |
-0.362% degree |
|
STC (Standard Test Conditions) |
lradiance 1000W / ㎡, Cell Kub 25 degree, Spectra ntawm AW1.5G |
Hluav taws xob Parameters ntawm NOCT
|
Lub zog siab tshaj plaws (Pmax) |
717W |
|
Lub zog siab tshaj plaws (Vmp) |
38.2V |
|
Maximum zog tam sim no (lmp) |
18.77A |
|
Qhib-Circuit Voltage (Voc) |
44.34V |
|
Luv-Circuit Current (lsc) |
19.74A |
|
Irradiance xov tooj cua (rov qab / pem hauv ntej) 10% |
Lub zog bifaciality: 70 ± 10% |
|
Maximum System Voltage |
1000/1500V DC (IEC) |
|
Ua haujlwm kub |
-40 degree degree -+85 degree |
|
Maximum Series Fuse |
30/35A |
|
Maximum Static Load, Pem Hauv Ntej |
5400 Ib., 1.5 |
|
Maximum Static Load, Rov qab |
2400 Ib., 1.5 |
|
NOCT (Nominal Operating Cel Kub) |
45 ± 2 degree Irradiance 800W / m², ambient kub 20 degree, cua ceev 1m / s, AM1.5G |
Daim ntawv thov
Jingsun670W Hnub Ci Vaj Huam Sib Luag yog qhov kev xaiv txhim khu kev qha rau cov chaw tsim hluav taws xob hnub ci loj. Nws cov kev ua haujlwm siab, ua haujlwm ntev, thiab kev saib xyuas qis ua rau nws zoo tagnrho rau kev siv nyob rau hauv ib puag ncig hnyav, thiab cov vaj huam sib luag tuaj yeem tsim kom muaj lub zog huv ntawm lawv lub neej ntev.
Rau kev siv tus kheej, Jingsun670W Hnub Ci Vaj Huam Sib Luag tuaj yeem siv los siv hluav taws xob hauv tsev thiab lwm lub tsev. Nws tuaj yeem pab cov tswv tsev txo lawv txoj kev cia siab rau cov khoom siv hluav taws xob ib txwm muaj, txo lawv cov nqi hluav taws xob thiab txo lawv cov pa roj carbon monoxide. Ntxiv rau, nrog nws cov qauv zoo nkauj thiab niaj hnub, nws tuaj yeem txhim kho qhov zoo nkauj ntawm lub tsev.
FAQ
Q: Dab tsi yog qhov lav rau Jinsun 670W Hnub Ci Vaj Huam Sib Luag?
Q: Dab tsi yog qhov loj ntawm Jinsun 670W Hnub Ci Vaj Huam Sib Luag?
Q: Cov ntawv thov dab tsi yog Jingsun 670W Hnub Ci Vaj Huam Sib Luag haum rau?
