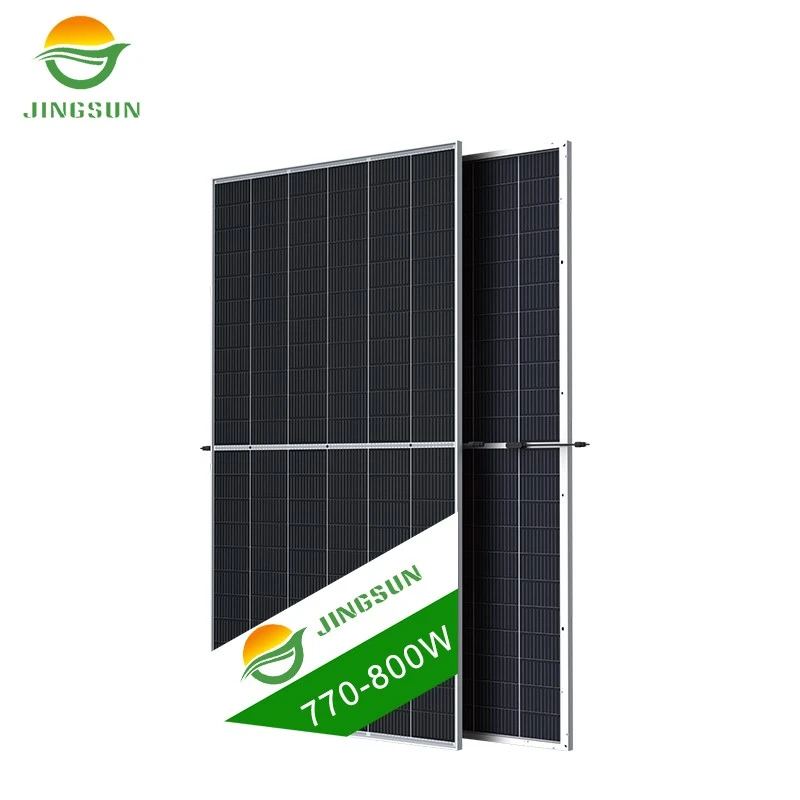

800 Watt Solar Vaj Huam Sib Luag

Cim: Customized ncej xim thiab cable ntev muaj thaum thov

1.advanced n-hom bifacial hJT thev naus laus zis

Qeb 210mm Wafers thiab ib nrab-txiav cell tsim, lub vaj huam sib luag no sib xyaw ua ke HJT Bifacial HJT kev nqus lub teeb ua kom zoo dua thiab lub zog hloov pauv kev ua haujlwm zoo dua thiab lub zog hloov kho tau zoo dua thiab lub zog hloov pauv kev ua haujlwm zoo dua thiab lub zog hloov kho tau zoo dua thiab lub zog hloov kho kev ua haujlwm zoo dua thiab kev txhim kho kev ua haujlwm zoo dua. Lub 18BB (Busbar) teeb tsa nrog nyias-hlais muaj kev tiv thaiv sab hauv thiab txhim kho cov khoom siv tam sim no.

2.Ntindabry-ua hwj huam & efficiency

Nrog lub zog siab tshaj plaws ntawm 800W thiab Module kev ua tau zoo txog 24.39%, nws xa cov hluav taws xob tsis raug. Lub tswv yim stencil cov txheej txheem luam ntawv thiab cov nyiaj-coated tooj liab ribboons hloov kho kev ua tau zoo, ua kom muaj zog tsawg tsawg.

3.4.1% ntau dua hauv ntej-sab tshaj tawm dua li Topcon

Ua tsaug rau nws HJT Architecture thiab Enhanced Electron Kev Mus Mus Hav Zoov

4.Exceptal Durability & Kev Ntseeg

Engineered nrog cov ntaub ntawv pub dawb los tshem tawm bi descration (b {0- hau), nws muaj cov robust tsis kam los tso thiab pid. Tsawg txhua xyoo degradation tus nqi (<0.3%) ensures long-term energy yield stability.

5.95% bifaciality rau lub zog tshaj tawm

Lub siab tawv rau lub vaj huam sib luag kom tsim tau txog li 95% ntawm nws sab pem hauv ntej tawm los ntawm sab nraub qaum, cuam tshuam ntau zog tsim khoom hauv av-mounted thiab mus txog tsev.

Stc (txheem ntsuas cov neeg mob): irradiance 1000 w / ㎡, ntsuas kub ntawm tes 25, huab cua loj 1. degrees, cua loj 1. degrass 1.5.

BSTC (BIFAC lej ntsuas qhov xwm txheej 1000 sab hauv ITYradiation iradiation 135 w / ㎡, huab cua loj 1. degrient 25 degree.

1. Silicon Wafer npaj

Xaiv cov khoom siv: siv 210mm n-Hom Monocrystalline Silicon Wafers (tsis tshua muaj pa cov ntsiab lus (b {{lid).

Cov texturing deg: etching los tsim ib qho micro-roughened nto rau kev nqus nqus hluav taws xob.

2. HJT Cell Raug

Tsis-Si Txheej Tso Tawm:

A-SiS Txheej: Depos of Hydrogenated Amorprous Silicon (A-Si: H) ntawm ob sab ntawm ntshav-txhim kho tshuaj vapor deposition (Pecvd). Cov qauv no lub heterojunction qauv rau kev sib cais them nqi.

TCO OXING: pob tshab oxide (piv txwv) txheej (piv txwv li, ito lossis zno) thov los ntawm kev ua kom haum saum npoo av thiab txhim kho kev coj ua.

Metallization:

Vijtsam luam ntawv: stencil luam tawm cov nyiaj-coated tooj liab paste rau pem hauv ntej-sab hluav taws xob (18bb busebars) kom txo qis tsis kam thiab txhim kho cov khoom siv tam sim no.

Cov Kev Sib Nrauj Rov Qab: Laser Ablation thiab Hlau Plating rau kev sib cuag sab tom qab.

3. Ib nrab-txiav cell ua

Laser txiav: Wafers tau muab faib ua ib nrab-hlwb kom txo rau sab hauv kev tawm tsam thiab txhim kho shating kev kam.

Kev sib txuas nrog: Nyias Nyiaj-Coated Tooj Liab Txuas ib nrab-hlwb hauv series / parallel, siv cov nplaum lossis ua kom zoo nkauj.

4. Module Assemly

Lamination:

Cov khaubncaws sab nraud povtseg: Cov ntaub qhwv yog cov qhaub cij ntawm lub taub hau pem hauv ntej, Eva encapsulant, thiab backsheet (lossis dual iav rau bifaciality).

Lub tshuab nqus tsev lamination: High-kub nias (140-150 degree) txheej txheej ua ke, kom muaj kev sib khi hermetic.

Daim Duab & Kev sib tshuam lub thawv: Aluminium thav ntawv thiab cov hlij muag sib tshuam nrog bypass diodes diodes tau ntxiv rau kev txhawb nqa kev lag luam thiab kev sib txuas hluav taws xob.

Kev Ntsuam Xyuas & Tswjhwm Zoo

Kev Ntsuas Hluav Taws Xob: IV Curvve Kev Ntsuas Hluav Taws Xob los xyuas cov khoom siv hluav taws xob (nce mus txog 800W), efficiency (24.39%), thiab bifaciality (95%).

Kev Xeem Tawm Tseg:

Thermal Cycling: kev laus sai sai rau simule kub chim.

Kev ntsuas av noo-khov: raug rau cov av noo siab thiab khov kho.

UV Yaus: UV Teeb pom kev los ntsuas qhov kev ua kom tsis txhob muaj kev mob.

Anti-pid / letid automatation: kev sim nyob rau hauv lub siab voltage thiab thermal kev ntxhov siab kom paub meej tias muaj peev xwm ua rau muaj peev xwm ua rau muaj peev xwm ua rau muaj peev xwm ua rau muaj peev xwm ua rau muaj peev xwm ua rau muaj peev xwm.

5.key Qhov zoo ua rau hauv cov txheej txheem

Tsawg-txheej txheem kub: HJT's<200°C manufacturing avoids thermal stress on silicon, reducing defects.

Nyiaj-txheej tooj liab ribbons: raug nqi-ua tau zoo thiab siab-ua daws teeb meem rau cov ntawv.

Dual-iav tsim: txhim kho kev ua kom zoo nkauj thiab bifacial lub teeb pom kev zoo.

Qhov txheej txheem ua ke no ua kom cov qauv ua haujlwm tau muab cov txiaj ntsig zoo, kev ntseeg tau ntev, thiab kev ua haujlwm zoo dua piv rau Topcon lossis Perc Technologies.

Jingsun tau tsim lub ntiaj teb ntse logistic system kom tau raws li cov khoom thauj mus los ntawm 800 cov khoom lag luam tau xa mus rau cov neeg siv khoom muaj kev nyab xeeb, muaj txiaj ntsig thiab muaj kev ruaj ntseg.

1. Kev thauj thoob ntiaj teb thiab kev thauj multimodal

Dynamically npaj txoj kev zoo tshaj plaws raws li Ai cov algorithm los txo tus naj npawb ntawm kev hloov chaw thiab tsheb thauj mus los.

2. Cov ntim ruaj khov thiab kev tiv thaiv kev nyab xeeb

Txais lub cartycyclb foneyclb + EPE Ua Npuas Ncauj Pob, hla kev ntsuas tsheb thauj mus los kom ntseeg tau tias cov modules yog lawm thaum poob thiab kev co.

3. Cov kev pabcuam customized

Muab cov thawv ntsuas kub kom txias-tswj kev thauj mus rau qhov siab thiab txias / kub.

Muab cov kev taw qhia tsis sib haum thiab kev txhawb nqa ntawm lub photovoltaic chaw nres tsheb chaw nres tsheb qhov chaw.

Kev Them Nyiaj Txiag: Txhawb CIF, FOB, EXW thiab lwm cov lus cog tseg kom tau raws li cov neeg siv khoom sib txawv.
