Hnub Ci Vaj Huam Sib Luag DATASHEET|HI-MO X10 SCIENTIST

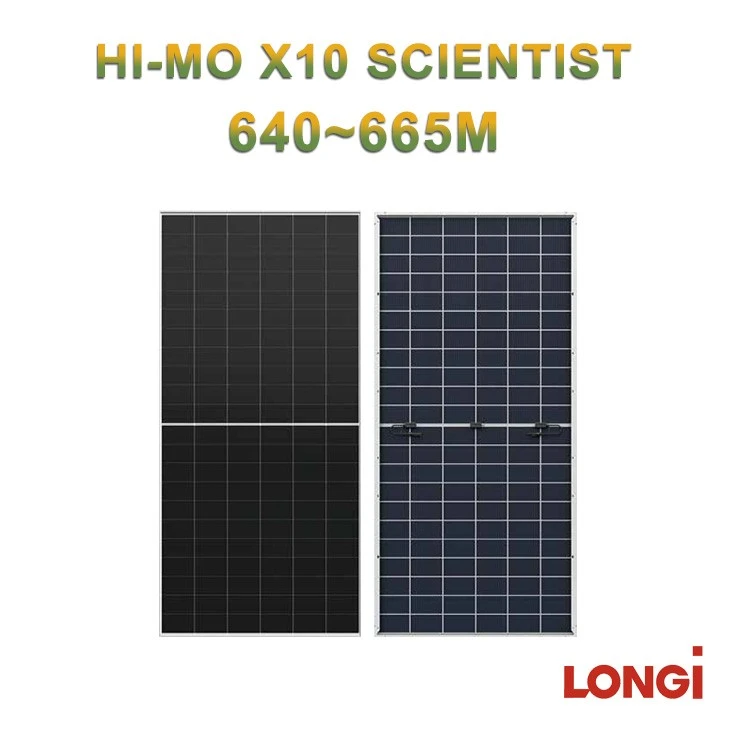

LONGi HPBC 665W Hnub Ci Vaj Huam Sib Luag

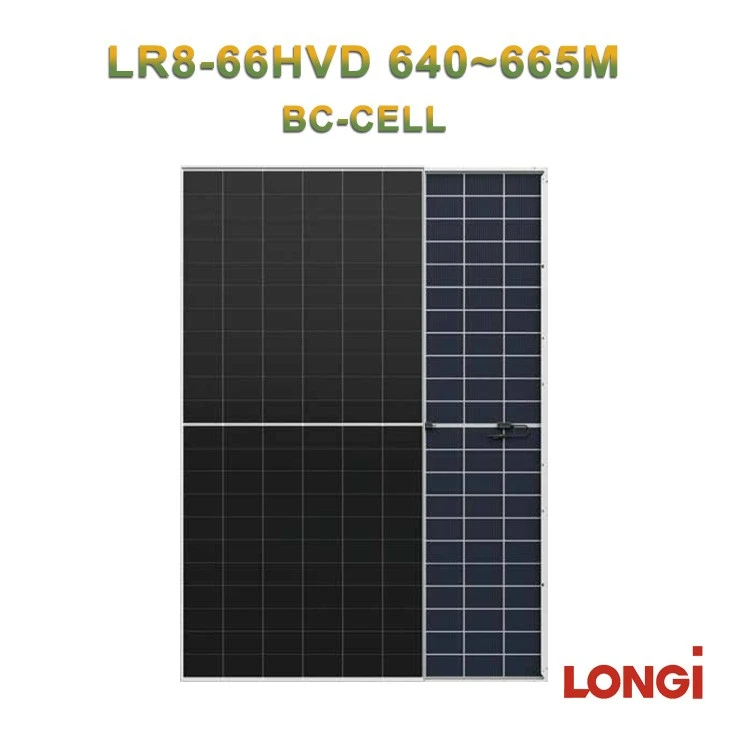

LR8-66HVD Series (640W–665W) – N-TaiRay + HPBC 2.0 + 0BB Module for Aesthetic-Sensitive & High-Reliability Projects
Lub LONGi HPBC 665W hnub ci vaj huam sib luag ( qauv LR8-66HVD, Hi-MO X10 Scientist series) yog cov tiam tom ntej ntawm LONGi lub nraub qaum-kev sib cuag module lineup, ua los ntawm N-TaiRay wafer khoom thiab HPBC 2.0BB xov tooj ntawm tes (kev sib txuas nrog lub tshuab hluav taws xob) Rated mus txog 24.62% module efficiency thiab 665W ncov lub hwj chim, nws muab ib tug tag nrho gridline -dawb pem hauv ntej nto, A+ anti-shading kev ua tau zoo, thiab txhim kho kev tiv thaiv rau micro- tawg thiab lub zos overheating - ua rau nws muaj zog haum rau architecturally tis zoo li pom.
|
Series |
Qauv |
Hwj chim Range |
Max Efficiency |
|
Nyob zoo-MO X10 Scientist |
LR8-66HVD |
640W – 665W |
24.62% |
Cov yam ntxwv tseem ceeb ntawm LONGi HPBC 665W Hnub Ci Vaj Huam Sib Luag
Lub LR8-66HVD series khub LONGi's N-TaiRay wafer khoom nrog thib ob- tiam HPBC (Hybrid Passivated Back Contact) xov tooj ntawm tes thiab 0BB kev sib txuas tsim qauv - ib kauj ruam tom ntej los ntawm tus qauv BC-cell platform, lub hom phiaj - huv dua pem hauv ntej - ntawm-module tsos.
1. Advanced Cell Technology – N-TaiRay + HPBC 2.0 + 0BB
HPBC 2.0 muab cov qauv kev hloov kho dua tshiab nrog rau xoom-busbar (0BB) kev sib txuas, txo qis kev poob qis thiab txhim kho lub teeb ntes thoob plaws ntawm tes. Ua ke nrog N-TaiRay wafer cov ntaub ntawv, lub platform no thawb module efficiency mus txog 24.62%, ua ntej ntawm tus qauv BC- cell tiam.
2. Tus nqi-Ntxiv cov zis - Fais fab coj los ntawm 30W+, A+ Anti-shading
LR8-66HVD xa tawm ntau dua 30W siab ncov lub zog tshaj qhov piv cov qauv sib piv ntawm tib lub hneev taw, thiab nqa A + tiv thaiv -shading rating - txhais tau tias lub vaj huam sib luag txhawb nqa cov zis ntau dua thaum ib feem ntawm cov array yog ntxoov ntxoo los ntawm chimneys, parapets, nyob ze cov qauv, los yog ib qho kev lag luam ru tsev.
3. Tsim kom zoo nkauj – Tsis muaj Frontal Gridlines, Scenario Integration
Vim hais tias HPBC hlwb khiav tag nrho cov conductors mus rau tom qab ntawm lub cell, pem hauv ntej nto tsis pom gridlines, muab lub module ib yam, tag nrho cov -dub tsos. Qhov no ua rau LR8-66HVD zoo haum rau tej yaam num uas pom kev sib koom ua ke teeb meem - lub tsev facades, carports, thiab rooftops pom los ntawm txoj kev theem los yog nyob rau hauv lub chaw.
4. Txhim kho kev nyab xeeb - Tiv thaiv kom tsis txhob muaj cua sov hauv zos, Tsawg Micro-Crack
0BB tsim faib tam sim no hla ntau cov ntsiab lus sib txuas, uas txo qis qhov kev pheej hmoo ntawm qhov chaw hotspots los ntawm cov xov tooj ntawm tes lossis ib nrab shading. Ua ke nrog cov qauv ntawm tes sib npaug sib npaug, qhov no yuav txo qis qhov tshwm sim ntawm micro- tawg thaum thauj, kev teeb tsa, thiab lub sijhawm ntev - thermal cycling.
|
Max Efficiency |
Hwj chim Tolerance |
Xyoo-1 Degradation |
Ib xyoos twg degradation (Y2-30) |
Lub zog Warranty |
|
24.62% |
0 ~ 3% |
< 1% |
0.35% / xyoo |
30 xyoo (linear) |
30-xyoo Linear Power Warranty
LONGi thim rov qab LR8-66HVD series nrog 15-xyoo lav ntawm cov ntaub ntawv thiab kev ua haujlwm, ntxiv rau 30-xyoo linear fais fab tso zis warranty, sib piv cov nqe lus lav ntawm qhov dav Hi-MO X10 Tus kws tshawb fawb lineup.
|
Warranty Milestone |
Xyoo 10 |
Xyoo 20 |
Xyoo 30 |
|
Tsawg kawg Guaranteed Fais Fab |
95.85% |
92.35% |
88.85% |
Cov yam ntxwv hluav taws xob - STC
Ntsuas ntawm Standard Test Conditions (STC): irradiance 1000W / m², cell kub 25 degree, AM1.5G spectrum. Kev ntsuas lub zog: ± 3%. Qhov sib txawv ntawm 665W (qhov tseem ceeb hauv qab no) yog qhov kev ntaus nqi zoo tshaj plaws nyob rau hauv nplooj ntawv no lub npe.
|
Hom Module |
Pmax (W) |
Voc (V) |
Isc (A) |
Vmp (V) |
Imp (A) |
Kev ua tau zoo |
|
LR8-66HVD-640M |
640 |
49.52 |
16.38 |
40.78 |
15.69 |
23.69% |
|
LR8-66HVD-645M |
645 |
49.62 |
16.46 |
40.88 |
15.78 |
23.88% |
|
LR8-66HVD-650M |
650 |
49.72 |
16.54 |
40.98 |
15.86 |
24.06% |
|
LR8-66HVD-655M |
655 |
49.82 |
16.62 |
41.08 |
15.94 |
24.25% |
|
LR8-66HVD-660M |
660 |
49.92 |
16.70 |
41.18 |
16.03 |
24.43% |
|
LR8-66HVD-665M (Tswj) |
665 |
50.02 |
16.78 |
41.28 |
16.11 |
24.62% |
Tsheb -Side Power Gain (Bifacial Reference, Raws li 645W)
Raws li ib tug bifacial - muaj peev xwm module, qhov tseeb tso zis yuav nce nrog rear - sab irradiance nce nyob ntawm qhov siab installation, albedo, thiab racking configuration.
|
Pmax Tau |
Pmax (W) |
Voc (V) |
Isc (A) |
Vmp (V) |
Imp (A) |
|
+5% |
677 |
49.62 |
17.28 |
40.88 |
16.57 |
|
+10% |
710 |
49.62 |
18.11 |
40.88 |
17.36 |
|
+15% |
744 |
49.72 |
18.93 |
40.98 |
18.15 |
|
+20% |
776 |
49.72 |
19.75 |
40.98 |
18.94 |
|
+25% |
808 |
49.72 |
20.58 |
40.98 |
19.73 |
Mechanical Parameters
Txawm hais tias tus lej suav qis dua li LR7-72HVD series, LR8-66HVD siv cov qauv HPBC loj dua thiab sib koom tib yam sab nraud - cia nws poob rau hauv tib lub racking thiab layout cov phiaj xwm.
|
Parameter |
Specification |
|
Cell Orientation |
132 hlwb (6 × 22) |
|
Junction Box |
IP68, peb lub diodes |
|
Output Cable |
4mm², +400/-200mm (customizable mus txog ± 1400mm) |
|
iav |
Dual iav, 2.0 + 2.0mm semi- tempered |
|
Ncej |
Anodized aluminium alloy |
|
Qhov hnyav |
33.5kg 3 |
|
Qhov ntev |
2382 × 1134 × 30 hli |
|
Ntim |
36 pcs / pallet · 144 pcs / 20 'GP thawv · 720 pcs / 40' HC thawv |
Kev khiav hauj lwm Parameters & Mechanical Loading
|
Kev Ua Haujlwm Parameter |
Tus nqi |
Mechanical Loading |
Tus nqi |
|
Ua haujlwm kub |
-40℃rau +85 degree |
Pem Hauv Ntej Max. Static Load |
5400 ua |
|
Fais fab tso zis kam rau ua |
0 ~ 3% |
Sab nraum qab Max. Static Load |
2400 Ib |
|
Maximum System Voltage |
DC 1500V (IEC) |
Hailstone Test |
25mm @ 23m / s |
|
Maximum Series Fuse Rating |
35 A |
Chav kawm tiv thaiv |
Chav II |
|
Nominal Operating Cell Temp. |
45 ± 2 degree |
Bifaciality |
75 ± 5% |
|
Kev ntsuas hluav taws |
IEC Chav Kawm C |
Kub Coefficients (STC)
|
Coefficient |
Tus nqi |
|
Kub Coefficient ntawm Isc |
+0.050% / degree |
|
Kub Coefficient ntawm Voc |
-0.200% / degree |
|
Kub Coefficient ntawm Pmax |
-0.260% / degree |
Cov ntawv pov thawj
IEC 61215, IEC 61730 - Kev tsim qauv tsim nyog thiab ntawv pov thawj kev nyab xeeb rau PV modules
ISO 9001: 2015 - Kev Tswj Xyuas Zoo
ISO 14001: 2015 - Environmental Management System
ISO 45001: 2018 - Kev Tswj Xyuas Kev Noj Qab Haus Huv & Kev Nyab Xeeb Kev Nyab Xeeb
IEC 62941 - Cov lus qhia rau kev tsim qauv tsim qauv thiab hom kev pom zoo

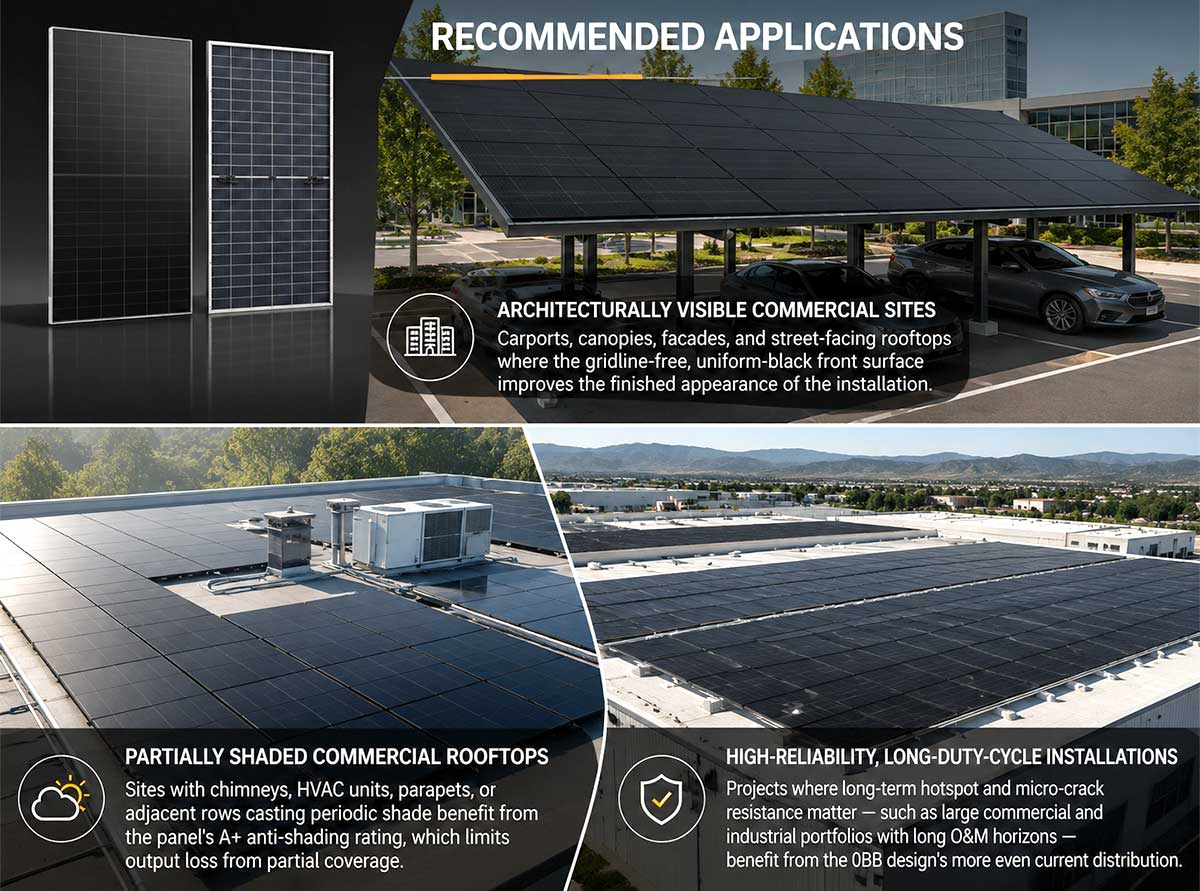

Pom zoo daim ntawv thov
Architecturally Visible Commercial Sites
Carports, canopies, facades, thiab txoj kev -faus rooftops qhov twg lub gridline -dawb, uniform-dub pem hauv ntej nto txhim kho qhov tiav tsos ntawm lub installation.
Ib nrab ntxoov ntxoo ua lag luam ru tsev
Cov chaw uas muaj chimneys, HVAC units, parapets, los yog cov kab uas nyob ib sab casting qhov chaw ntxoov ntxoo tau txais txiaj ntsig los ntawm lub vaj huam sib luag A + anti-shading rating, uas txwv tsis pub cov khoom poob los ntawm ib feem ntawm cov kev pab cuam.
Siab-Kev ntseeg siab, Ntev-Lub luag haujlwm- Cycle Installations
Tej yaam num uas ntev -lub sij hawm hotspot thiab micro- tawg tiv thaiv teeb meem - xws li cov lag luam loj thiab kev lag luam portfolios nrog ntev O&M horizons - tau txais txiaj ntsig los ntawm 0BB tsim ntau dua txawm tias tam sim no tis.
LR8-66HVD (HPBC 2.0) vs. LR7-72HVD (BC-Cell)
Ob lub koob zaum hauv LONGi's Hi-MO X10 Tus kws tshawb fawb kab thiab qhia tib yam 640–665W lub zog hluav taws xob, qhov ntev sab nraud, thiab cov ntsiab lus lav - tab sis txawv ntawm cov cuab yeej ntawm tes, kev ntsuas hluav taws xob, thiab cov ntaub ntawv siv zoo tagnrho. Siv cov lus hauv qab no kom phim cov qauv tsim nyog rau qhov project qhov tseem ceeb.
|
Yam ntxwv |
LR8-66HVD (HPBC 2.0 - nplooj ntawv no) |
LR7 -72HVD (BC-Cell) |
|
Cell Technology |
N-TaiRay + HPBC 2.0 + 0BB |
TaiRay wafer + BC-Cell |
|
Cell Layout |
132 hlwb (6 × 22) |
144 hlwb (6 × 24) |
|
Hwj chim Range |
640W – 665W |
640W – 665W |
|
Max Module Efficiency |
24.62% |
24.6% |
|
Hwj chim Tolerance |
0 ~ 3% |
0 ~ 3% |
|
Xyoo-1 / Ib xyoos twg degradation |
< 1% / 0.35% per year |
< 1% / 0.35% per year |
|
Max Series Fuse Rating |
35 A |
30 A |
|
Bifaciality |
75 ± 5% |
70 ± 5% |
|
Kev ntsuas hluav taws |
IEC Chav Kawm C |
UL Hom 29 / IEC Chav Kawm C |
|
Pem hauv ntej-Side Aesthetic |
Tsis muaj kab sib chaws pem hauv ntej, sib npaug tag nrho -dub tiav |
Txheem BC pem hauv ntej nto |
|
Shading kam rau ua |
A+ tiv thaiv -shading kev ua tau zoo |
Txuj |
|
Micro-Crack / Hotspot Resistance |
0BB tsim los txo cov micro- tawg thiab hauv zos overheating |
Txheem BC kev ntseeg tau |
|
Qhov hnyav / qhov ntev |
33.5 kg / 2382 × 1134 × 30 mm |
33.5 kg / 2382 × 1134 × 30 mm |
|
Warranty |
15-xyoo khoom / 30-xyoo linear zog |
15-xyoo khoom / 30-xyoo linear zog |
|
Zoo tshaj plaws |
Aesthetic-sensitive, ib nrab-shading, thiab pom qhov chaw lag luam/architectural |
General - lub hom phiaj faib khoom thiab ua lag luam ru tsev |
Hauv luv luv: xaiv LR8-66HVD (HPBC 2.0) qhov twg pem hauv ntej- ntawm-module tsos, ib nrab-shading kam rau ua, los yog ntxiv hotspot/micro- crack resistance yog qhov tseem ceeb. Xaiv lub LR7-72HVD (BC-Cell) rau cov phiaj xwm kev lag luam thiab kev faib tawm uas tus qauv BC kev ua tau zoo thiab qhov siab dua me ntsis fuse headroom margin txaus.
FAQ
Q: HPBC 2.0 txhais li cas ntawm LONGi 665W vaj huam sib luag?
A: HPBC sawv cev rau Hybrid Passivated Back Contact - lub xov tooj ntawm tes uas txav tag nrho cov hluav taws xob tiv tauj mus rau tom qab ntawm tes. Version 2.0 ntxiv cov txheej txheem passivation hloov dua siab tshiab thiab 0BB (zero busbar) kev sib cuam tshuam rau kev poob qis thiab kev ua haujlwm siab dua.
Q: 0BB yog dab tsi thiab vim li cas nws tseem ceeb?
A: 0BB tshem tawm cov tsoos busbars ntawm lub xov tooj ntawm tes, hloov lawv nrog cov phiaj xwm kev sib cuag. Qhov no txo qis shading poob ntawm lub xov tooj ntawm tes nws tus kheej thiab kis tam sim no hla ntau cov ntsiab lus sib cuag, txo qhov kev pheej hmoo ntawm cov cua sov hauv zos thiab micro- tawg.
Q: LR8-66HVD txawv ntawm LR7-72HVD li cas?
A: Ob leeg yog BC-tsev neeg modules nyob rau hauv Hi-MO X10 Scientist series nrog tib lub zog ntau thiab hneev taw, tab sis LR8-66HVD siv HPBC 2.0 nrog 0BB thev naus laus zis, nce mus txog qhov ua tau zoo dua me ntsis (24.62% vs 24.6%), thiab ntxiv A+ kev ua haujlwm tsis pub dhau 24.6%), thiab ntxiv 10-a + shading nto. Saib cov lus sib piv saum toj no kom paub meej tag nrho.
Q: Puas yog LONGi HPBC 665W vaj huam sib luag haum rau qee qhov ntxoov ntxoo?
A: Yog. Nws A + anti-shading ntsuam xyuas tshwj xeeb yog tsim los txo cov hluav taws xob poob thaum ib feem ntawm cov array yog ntxoov ntxoo los ntawm kev cuam tshuam xws li vents, parapets, lossis cov qauv nyob ze.
Q: Dab tsi warranty yog LR8-66HVD nqa?
A: Nws muaj 15-xyoo lav ntawm cov ntaub ntawv thiab kev ua haujlwm, ntxiv rau 30-xyoo linear fais fab tso zis warranty, lav tsawg kawg yog 88.85% ntawm lub zog ntsuas xyoo 30.
Q: Muaj pes tsawg panels haum nyob rau hauv ib lub thawv shipping?
A: Txheem ntim yog 36 panels ib pallet, kwv yees li 144 panels rau 20 'GP thawv, thiab kwv yees li 720 panels rau 40' HC thawv - zoo tib yam rau LR7-72HVD series.
