Khoom Zoo
- Low Power Temperature Coefficient:Lub Risen 540W hnub ci vaj huam sib luag nthuav tawm lub zog hluav taws xob qis qis, uas txhais tau hais tias nws lub zog tsim hluav taws xob yuav tsis cuam tshuam los ntawm qhov kub thiab txias. Qhov no ua rau nws yog ib qho kev xaiv txhim khu kev qha txawm nyob rau hauv cov huab cua kub.
- Zoo heev Anti-PID Performance:Lub Risen 540W hnub ci vaj huam sib luag yog tsim los tiv thaiv Potential-Induced Degradation (PID). Qhov no yog cov txheej txheem uas tuaj yeem txo qhov tso tawm ntawm lub hnub ci vaj huam sib luag hauv qee yam xwm txheej. Kev ua haujlwm tiv thaiv PID ntawm Risen 540W vaj huam sib luag ua kom ntseeg tau tias nws cov khoom siv hluav taws xob tseem ruaj khov thiab txhim khu kev qha nyob rau lub sijhawm ntev.
- Dual Theem 100% EL Kev Tshawb Fawb:Lub Risen 540W hnub ci vaj huam sib luag tau dhau los ua ob theem 100% EL (Electroluminescence) kev soj ntsuam nruj heev. Qhov no ua kom ntseeg tau tias tsuas yog cov vaj huam sib luag zoo tshaj plaws raug xa mus rau cov neeg siv khoom. Cov txheej txheem tshuaj xyuas EL pab tshawb xyuas cov teeb meem uas muaj feem cuam tshuam nrog lub vaj huam sib luag lub hlwb, xws li cov kab nrib pleb lossis qhov tsis xws luag, thiab kho lawv ua ntej cov khoom xa tuaj.
- Kev ua haujlwm siab:Lub Risen 540W hnub ci vaj huam sib luag muaj qhov ua haujlwm siab, uas txhais tau hais tias nws tuaj yeem hloov lub hnub ci ntau rau hauv lub zog siv tau. Qhov no ua rau nws yog qhov kev xaiv zoo tshaj plaws rau cov neeg uas muaj qhov chaw txwv rau hnub ci vaj huam sib luag lossis rau cov neeg tab tom nrhiav kom ua kom lawv lub zog ntau lawm.
- Environmentally Friendly:Lub Risen 540W hnub ci vaj huam sib luag yog lub zog huv, rov ua dua tshiab uas tsis tso pa tawm hauv tsev cog khoom lossis ua rau muaj pa phem. Los ntawm kev siv Risen hnub ci vaj huam sib luag, cov tib neeg thiab cov koom haum tuaj yeem ua rau muaj kev cuam tshuam zoo rau ib puag ncig thaum lub zog rau lawv lub tsev lossis kev lag luam.

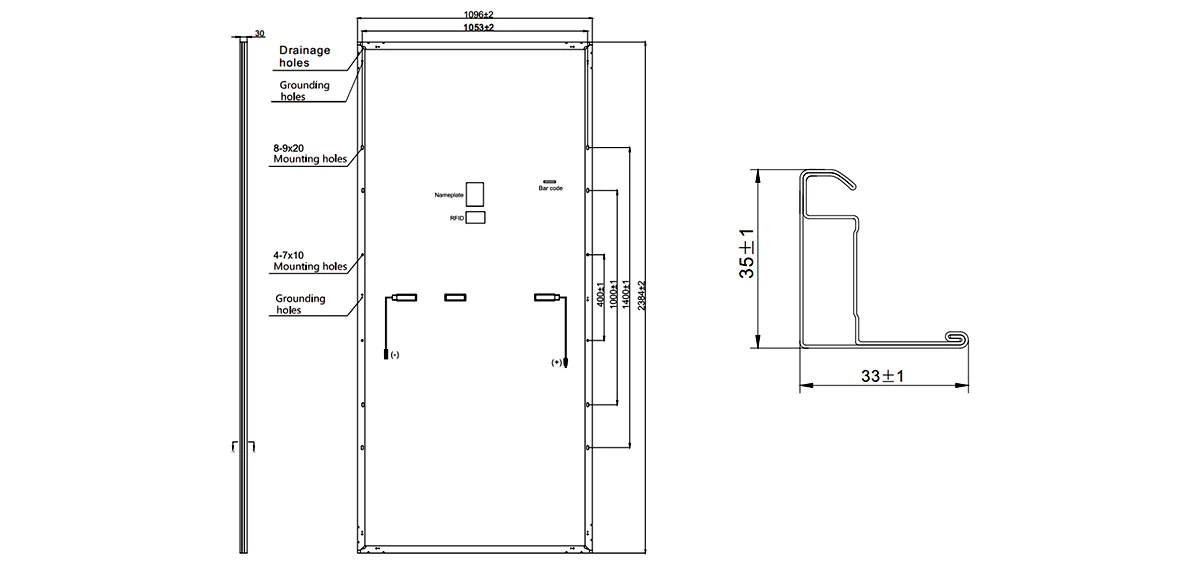

Engineering Drawing (mm)
Mechanical Data
|
Solar Cells |
Monocrystalline |
|
Cell Configuration |
110 hlwb (5 × 11+5 × 11) |
|
Module Dimensions |
2384 × 1096 × 30mm |
|
Qhov hnyav |
30.5 kg ib |
|
Superstrate |
High Transmission, Tsawg Hlau, Tempered ARC iav |
|
Substrate |
Dawb Back-daim ntawv |
|
Ncej |
Siab zog alloy steel, Dub |
|
J-Box |
Potted, IP68, 1500VDC, 3 Schottky bypass diodes |
|
Cables |
4. |
|
Txuas |
Risen Twinsel PV-SY02, IP68 |
Hluav taws xob Parameters ntawm STC
|
Qauv nab npawb |
RSM{0}}M |
RSM{0}}M |
RSM{0}}M |
RSM{0}}M |
RSM{0}}M |
RSM{0}}M |
|
Rated Fais fab hauv Watts-Pmax |
535W |
540W |
545W |
550W |
555W |
560W |
|
Qhib Circuit Court Voltage-Voc |
37.58V |
37.78V |
38.02V |
38.24V |
38.46V |
38.68V |
|
Short Circuit Current-Isc |
18.13A |
18.18A |
18.23A |
18.28A |
18.33A |
18.38A |
|
Lub zog siab tshaj plaws-Vmpp |
31.26V |
31.46V |
31.66V |
31.86V |
32.06V |
32.26V |
|
Lub zog siab tshaj plaws tam sim no-Impp |
17.12A |
17.17A |
17.22A |
17.27A |
17.32A |
17.37A |
|
Module Efficiency (%) |
20.5% |
20.7% |
20.9% |
21.0% |
21.2% |
21.4% |
|
STC |
Irradiance 1000 W / m², Cell Kub 25 degree, Cua Mass AM1.5 raws li EN 60904-3 |
|||||
Hluav taws xob Parameters ntawm NMOT
|
Qauv nab npawb |
RSM{0}}M |
RSM{0}}M |
RSM{0}}M |
RSM{0}}M |
RSM{0}}M |
RSM{0}}M |
|
Lub zog siab tshaj plaws-Pmax |
405.3W |
409.0W |
412.8W |
416.7W |
420.5W |
424.3W |
|
Qhib Circuit Court Voltage-Voc |
34.95V |
35.14V |
35.36V |
35.56V |
35.77V |
35.97V |
|
Short Circuit Current-Isc |
14.87A |
14.91A |
14.95A |
14.99A |
15.03A |
15.07A |
|
Lub zog siab tshaj plaws-Vmpp |
39.01V |
39.19V |
39.38V |
39.57V |
39.75V |
39.94V |
|
Lub zog siab tshaj plaws tam sim no-Impp |
13.97A |
14.01A |
14.05A |
14.09A |
14.13A |
14.17A |
|
NMOT |
Irradiance ntawm 800 W / m², Ambient Kub 20 degree, Cua Ceev 1 m / s |
|||||
Qhov kub thiab txias siab tshaj plaws
|
Nominal Module Ua Haujlwm Kub Kub (NMOT) |
44 degree ± 2 degree |
|
Kub Coefficient ntawm Voc |
-0.25% / degree |
|
Kub Coefficient ntawm Isc |
0.04% / degree |
|
Kub Coefficient ntawm Pmax |
-0.34% / degree |
|
Kev ua haujlwm kub |
-40 degree ~ +85 degree |
|
Maximum System Voltage |
1500VDC |
|
Max Series Fuse Rating |
30A |
|
Limiting Reverse Current |
30A |
Kev koom tes hom
Peb zoo siab tshaj tawm peb txoj kev koom tes sib sib zog nqus nrog cov tuam txhab ua lag luam hauv kev lag luam hnub ci zog. Ntawm Jingsun, peb tau cog lus tias yuav txhawb kev txhim kho thiab siv lub zog huv thiab rov ua dua tshiab. Qhov kev koom tes no tso cai rau peb ua haujlwm nrog cov koom haum zoo li lub siab los tsim cov kev daws teeb meem tshiab uas yuav muaj txiaj ntsig zoo rau peb cov lag luam thiab ib puag ncig.
Los ntawm kev sib koom tes no, peb tau nkag mus rau cov thev naus laus zis thev naus laus zis thiab kev txawj ntse uas yuav ua rau peb tsim cov hnub ci zoo thiab lub zog cia. Nyob rau hauv tas li ntawd, peb cov neeg koom tes muaj kev nkag tau mus rau peb cov advanced manufacturing chaw thiab cov neeg ua haujlwm tau txais kev cob qhia.
Ua ke, peb tau cog lus los tsav tus nqi ntawm lub hnub ci zog, nthuav nws txoj kev ncav cuag thoob plaws lub ntiaj teb, thiab tsim kom muaj lub neej nyob ruaj khov rau tiam tom ntej. Nrog peb lub zeem muag thiab kev txawj ntse, peb ntseeg siab tias qhov kev sib koom tes no yuav ua rau muaj kev hloov pauv zoo hauv kev lag luam hnub ci zog.
Raws li peb txuas ntxiv ua haujlwm zoo ua ke, peb cia siab tias yuav thawb cov ciam teb ntawm kev tsim kho tshiab thiab ua kom lub ntiaj teb huv dua thiab muaj kev noj qab haus huv los ntawm kev siv lub hnub ci zog.
FAQ
Q: Dab tsi yog cov txiaj ntsig ntawm Risen 540W hnub ci vaj huam sib luag?
Q: Yuav ua li cas npaum li cas yog Risen 540W hnub ci vaj huam sib luag?
Q: Risen 540W hnub ci vaj huam sib luag kav ntev npaum li cas?
Q: Lub zog npaum li cas tuaj yeem nce 540W hnub ci vaj huam sib luag tsim?
Q: Puas yog Risen 540W hnub ci vaj huam sib luag zoo peev?
