Khoom Description
Cov yam ntxwv tseem ceeb ntawm 400W monocrystalline hnub ci vaj huam sib luag yog raws li hauv qab no
|
Hom |
PERC |
|
Vaj huam sib luag Efficiency |
21.9% |
|
Busbar |
9 ib BB |
|
Back Sheet Xim |
Dub los yog Sliver |
|
Pem hauv ntej iav |
3.2mm Tempered iav |
|
Vaj Huam Sib Luag Loj |
1769 * 1052 * 30mm |
|

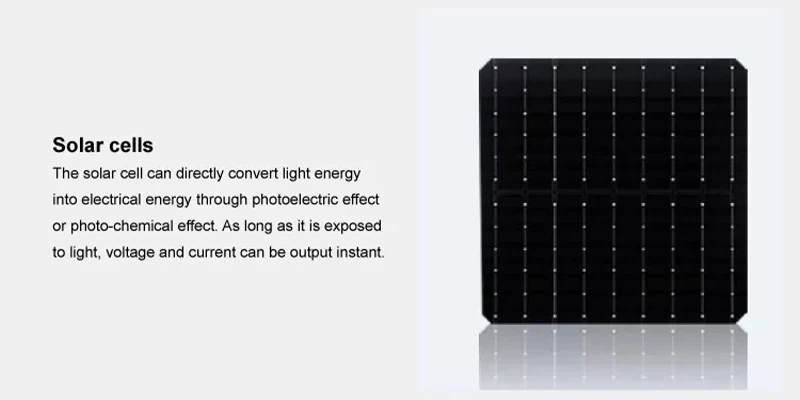

Solar Cell Loj |
166 * 166 hli |
|
Tsis muaj Cells |
120(6×20) |
|
Qhov hnyav |
20.5 kg ib |
|
Warranty |
25 xyoo |
Khoom zoo
●Cov txheej txheej sab nraud ntawm peb 400W hnub ci vaj huam sib luag yog tiv thaiv los ntawm 3.2mm tempered iav. Qhov saum npoo yog du nrog lub teeb pom kev zoo, tsis tshua muaj kev cuam tshuam, siab zog thiab compression tsis kam, thiab lwm yam, uas tuaj yeem ua kom muaj kev nyab xeeb thiab ruaj khov siv lub hnub ci vaj huam sib luag.
● Peb cov khoom yog tsim nyob rau hauv ib qho kev nyab xeeb thiab tsis muaj plua plav rhiav. Cov neeg ua haujlwm zoo thiab muaj kev paub dhau los sib sau ua ke thiab tsim raws li cov txheej txheem tsim khoom lag luam kom ntseeg tau tias kev sib koom ua ke ntawm kev ua tau zoo thiab zoo ntawm peb cov khoom.

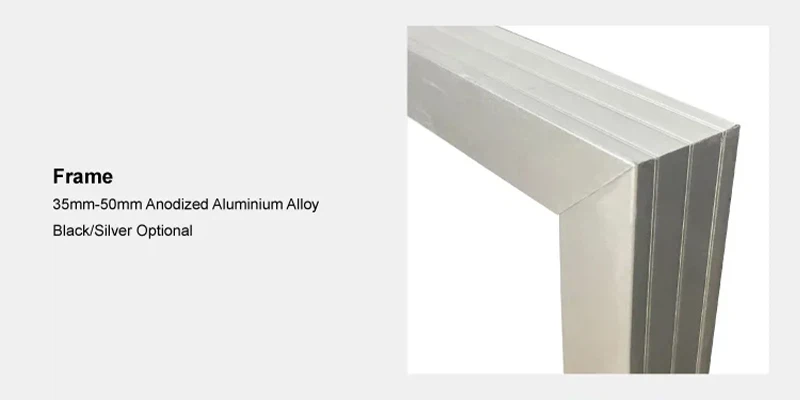

●Cov txheej txheej sab nrauv ntawm sab hnub ci vaj huam sib luag yog ib qho txhuas thav duab, uas muab cov qauv tsim lub zog rau lub vaj huam sib luag, tuaj yeem tiv taus cua txias thiab huab cua sab nraud, thiab tuaj yeem tiv thaiv plaub fab ntawm tempered iav. Peb aluminium alloy thav duab muaj cov qauv kev soj ntsuam nruj nruj kom ntseeg tau tias muaj zog txaus thiab tus qauv loj.
Hluav taws xob Parameters ntawm STC
|
Lub zog siab tshaj plaws (Pmax) |
400W |
|
Lub zog siab tshaj plaws (Vmp) |
35.91V |
|
Maximum zog tam sim no (lmp) |
11.14A |
|
Qhib-Circuit Voltage (Voc) |
42.26V |
|
Luv-Circuit Current (lsc) |
11.68A |
|
Hwj chim Tolerance |
0~+5W |
|
Kub Coefficients ntawm Pmax |
-0.350% degree |
|
Kub Coefficients ntawm Voc |
-0.272% degree |
|
Kub Coefficients ntawm lsc |
+0.044% degree |
|
STC (Standard Test Conditions) |
lradiance 1000W / ㎡, Cell Kub 25 degree, Spectra ntawm AW1.5 |
Hluav taws xob Parameters ntawm NOCT
Hluav taws xob Parameters ntawm NOCT
|
Lub zog siab tshaj plaws (Pmax) |
304W |
|
Lub zog siab tshaj plaws (Vmp) |
33.68V |
|
Maximum zog tam sim no (lmp) |
8.98A |
|
Qhib-Circuit Voltage (Voc) |
40.13V |
|
Luv-Circuit Current (lsc) |
9.50A |
|
Qhov siab tshaj qhov System Voltage |
1000V / 1500V DC (IEC) |
|
Ua haujlwm kub |
-40 degree ~ +85 degree |
|
Maximum Series Fuse |
25A |
|
Pem hauv ntej Sab Qhov siab tshaj qhov chaw thau khoom |
5400 Ib., 1.5 |
|
Sab nraub qaum siab tshaj qhov chaw thau khoom |
2400 Ib., 1.5 |
|
NOCT (Nominal Operating Cell Temperature) |
Lradiance 800W / ㎡, Ambient Kub 20 degree, Cua peed 1m / s, AW1.5G |
Daim ntawv thov
●400W Mono Solar Vaj Huam Sib Luag tuaj yeem them koj lub tsheb hluav taws xob, thiab koj tuaj yeem nruab hnub ci them pawg rau cov tsheb hluav taws xob hauv zej zog. Koj tuaj yeem nruab hnub ci vaj huam sib luag saum toj ntawm lub chaw nres tsheb, uas yog ob qho tib si zoo nkauj thiab siv tau.
● Hnub ci vaj huam sib luag tuaj yeem ntsia tau ze ntawm lub pas dej ntses. Thaum tsim hluav taws xob, photovoltaic panels tseem tuaj yeem thaiv lub hnub ci thiab txo cov dej kub, uas tuaj yeem txhawb txoj kev loj hlob ntawm aquaculture. Nqaij qaib, os thiab ntses aquaculture tuaj yeem ua ke nrog lub hnub ci zog.
● Hauv kev kho dej phwj tuaj, lub zog tsim hluav taws xob ntawm lub hnub ci zog kuj tuaj yeem siv rau kev kho dej phwj tuaj. Nws yog qhov xav tias lub zog huv thiab tsis muaj kuab paug tuaj yeem siv los kho cov dej phwj tuaj, uas tuaj yeem ua rau peb qhov chaw nyob zoo dua.
Tsev Solar Vaj Huam Sib Luag
Public Solar Vaj Huam Sib Luag
Solar Sewage Treatment System
Hnub Ci Vaj Huam Sib Luag Thiab Ua liaj ua teb
Ntim thiab Shipping
Muaj kev paub tab, ruaj khov, qauv thiab txhim khu kev lag luam ntim thiab kev thauj mus los, uas tuaj yeem lav qhov kev nyab xeeb tuaj txog ntawm cov khoom rau koj qhov chaw.
Kev pab txhawb nqa
Jingsun tau cog lus los muab kev txhawb nqa tshwj xeeb tom qab muag rau lawv cov neeg siv khoom, txawm tias tom qab muag 400W hnub ci vaj huam sib luag. Jingsun nkag siab txog qhov tseem ceeb ntawm kev pabcuam raws sijhawm thiab txhim khu kev qha, tshwj xeeb tshaj yog rau lawv cov neeg siv khoom uas siv cov khoom siv hnub ci thawj zaug.
Jingsun cov kev pab txhawb nqa yog tsim los ntawm cov kws tshaj lij uas paub txog kev teeb tsa lub hnub ci thiab kev saib xyuas. Lawv muab kev qhia ua haujlwm dav dav, daws teeb meem, thiab muab cov kev daws teeb meem los xyuas kom meej tias lawv cov neeg tau txais txiaj ntsig zoo tshaj plaws ntawm lawv cov hnub ci vaj huam sib luag.
FAQ
Q: Koj cov khoom tseem ceeb yog dab tsi?
Q: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
Q: Koj puas tuaj yeem luam peb lub tuam txhab logo rau ntawm daim ntawv teev npe thiab ntim khoom?
Cov neeg siv tshuaj xyuas
Eric Kim2021-05-06 08:39:21
Jingsun hnub ci vaj huam sib luag tsis yog tsuas yog pheej yig xwb tab sis kuj yog qhov zoo tshaj plaws.
Anthony Nguyen2022-08-07 11:29:35
Kuv tau txuag nyiaj ntau ntawm kuv cov nqi hluav taws xob txij li thaum kuv tau teeb tsa Jingsun hnub ci vaj huam sib luag ntawm kuv lub ru tsev.
Steven Smith2022-09-13 14:12:42
Cov txheej txheem ntawm kev yuav Jingsun hnub ci vaj huam sib luag yog tsis muaj teeb meem thiab du.
Michael Johnson 2019-11-03 15:24:49
Jingsun hnub ci vaj huam sib luag yog ib qho kev nqis peev zoo rau lub neej yav tom ntej thiab ntsuab.
Cim npe nrov: 400w mono solar vaj huam sib luag, Tuam Tshoj 400w mono solar vaj huam sib luag manufacturers, lwm tus neeg, Hoobkas
