Khoom Zoo

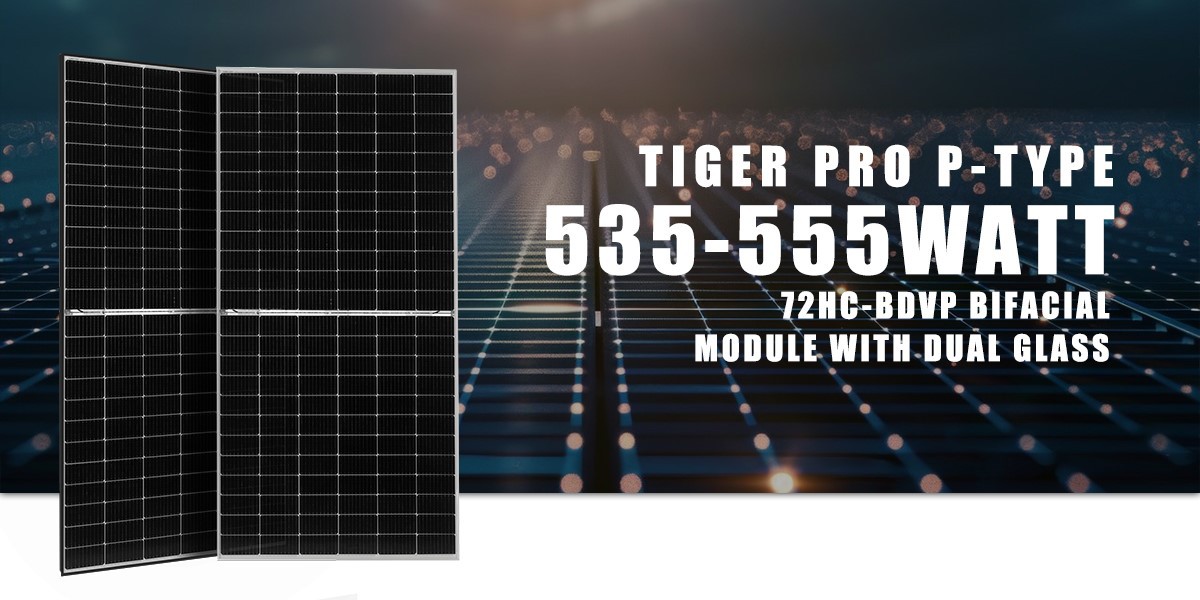

1. Bifacial Module nrog dual iav:Lub Jinko 555W hnub ci vaj huam sib luag nta lub hnub ci ntawm lub ntsej muag tsim nrog ob lub iav uas tso cai rau nws khaws lub hnub ci los ntawm sab xub ntiag thiab sab nraub qaum. Cov cuab yeej no txhim kho lub zog tsim hluav taws xob, ua rau lub module zoo tagnrho rau cov chaw uas muaj qhov txwv lub ru tsev.
2. Multi Busbar Technology:Jinko 555W hnub ci vaj huam sib luag los nrog ntau lub tsheb npav tsim uas txo cov hluav taws xob tiv thaiv thiab txhim kho lub zog tso zis. Qhov kev siv tshuab no ua rau cov qauv tsim hluav taws xob ntau dua, ua rau nws muaj txiaj ntsig zoo dua thiab muaj txiaj ntsig zoo hnub ci.
3. Txhim kho Mechanical Load:Jinko 555W hnub ci vaj huam sib luag yog tsim nrog cov khoom siv muaj zog uas tso cai rau nws tiv taus huab cua hnyav thiab cov khoom siv siab. Cov yam ntxwv no ua rau nws ruaj khov thiab zoo tagnrho rau thaj chaw uas muaj cua daj cua dub thiab hnyav daus.

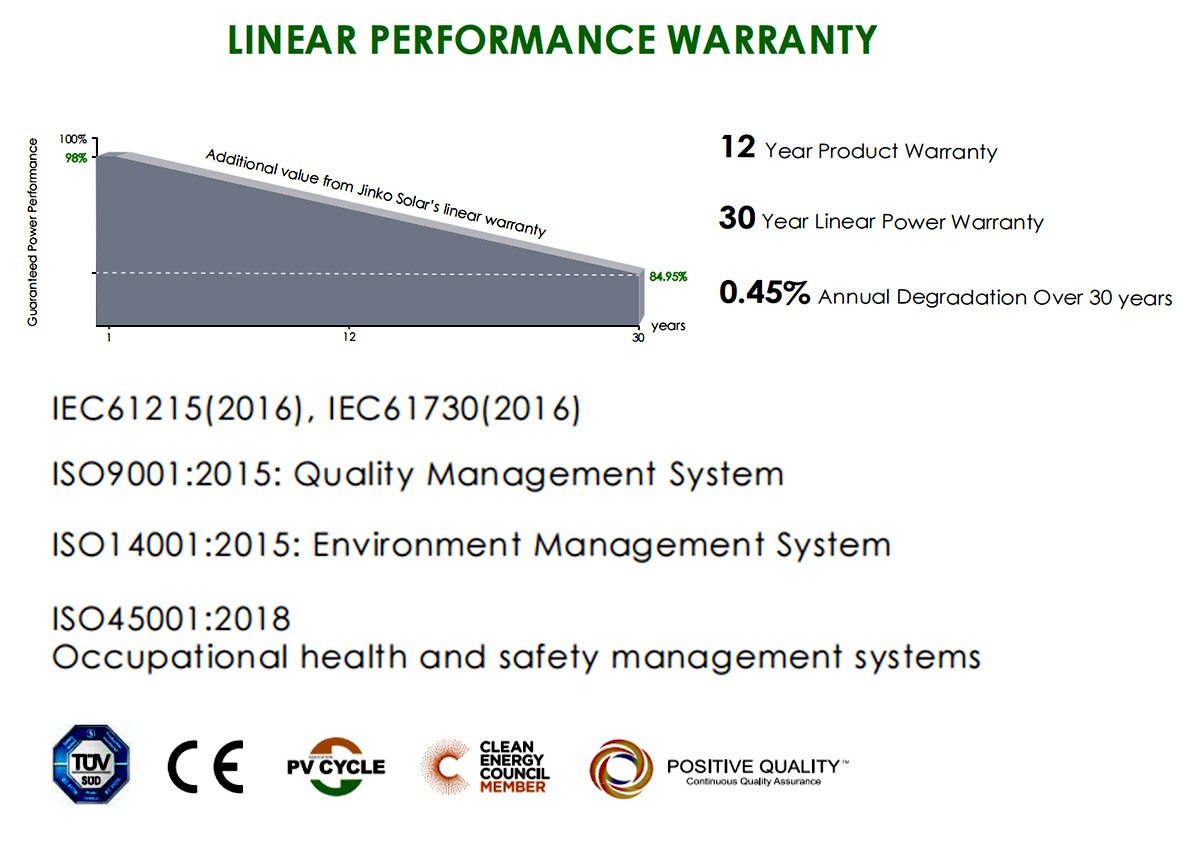

4. Lub neej ntev-lub sij hawm fais fab tso zis:Jinko 555W hnub ci vaj huam sib luag yog tsim los xa cov khoom siv hluav taws xob siab tshaj nws lub neej, ua rau nws txhim khu kev qha thiab siv tau ntev. Qhov xwm txheej no ua rau lub kaw lus muab nyiaj rov qab ntau dua ntawm kev nqis peev, thiab kev txuag hluav taws xob ntau dua lub sijhawm.
5.High Efficiency:Jinko 555W hnub ci vaj huam sib luag boasts ib tug impressive efficiency ntsuam xyuas ntawm ntau tshaj 22%. Qhov kev ua tau zoo ntawm qib no pab txo tus naj npawb ntawm cov qauv tsim nyog rau kev teeb tsa lub hnub ci, yog li txuag ntawm cov nqi teeb tsa thiab ua kom tag nrho cov kev ua tau zoo.
Specifications

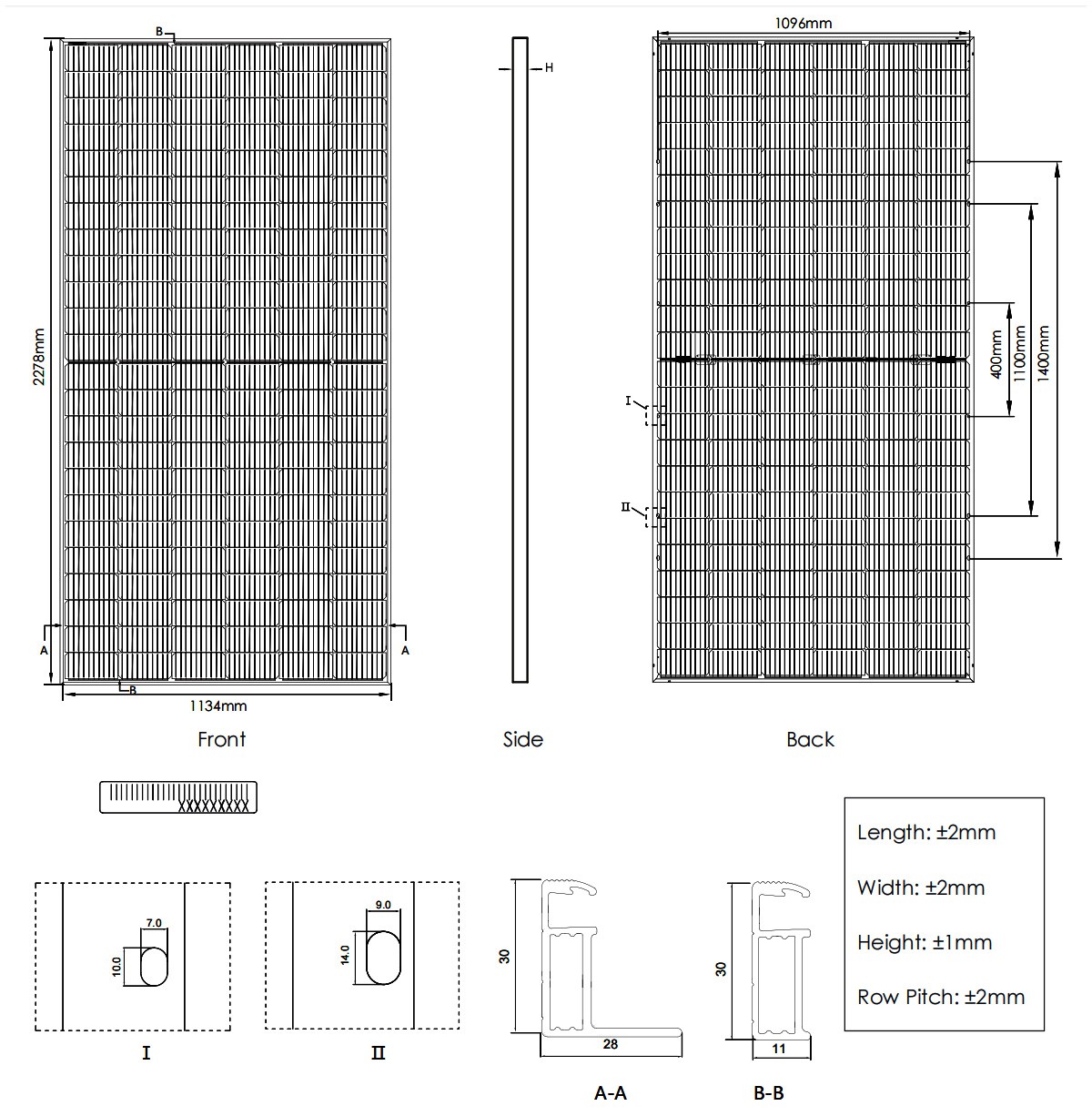

Mechanical yam ntxwv
|
Hom Cell |
P-hom Mono-crystalline |
|
Tsis muaj cell |
144 (6x24) |
|
Qhov ntev |
2278 × 1134 × 30mm (89.69 × 44.65 × 1.18 nti) |
|
Qhov hnyav |
31 kg (68.34 ib.) |
|
Pem hauv ntej iav |
2.0mm, Anti-Reflection Txheej |
|
Khob khob |
2 |
|
Ncej |
Anodized Aluminium Alloy |
|
Junction Box |
lP68 ua |
|
Chav kawm tiv thaiv |
Chav ll |
|
IEC Hom Hluav Taws Xob |
Chav Kawm C |
|
0utput Cables |
4.0 mm²:(+): 400 mm ,(-): 200 mm lossis customized Length |
Hluav taws xob yam ntxwv ntawm STC
|
Hom Module |
JKM535M-72HL4-BDVP |
JKM540M-72HL4-BDVP |
JKM545M-72HL4-BDVP |
JKM550M-72HL4-BDVP |
JKM555M-72HL4-BDVP |
|
Lub zog siab tshaj plaws - Pmax |
535 wb |
540 wb |
545 wb |
550 wb |
555 wb |
|
Lub zog siab tshaj plaws - Vmp |
40.94V |
41.13V |
41.32V |
41.51V |
41.70V |
|
Maximum fais fab tam sim no - Imp |
13.07A |
13.13A |
13.19A |
13.25A |
13.31A |
|
Qhib-Circuit Voltage - Voc |
49.54V |
49.73V |
49.92V |
50.11V |
50.30V |
|
Short-circuit Current - Isc |
13.83A |
13.89A |
13.95A |
14.01A |
14.07A |
|
Module Ua Haujlwm los ntawm STC |
20.71% |
20.90% |
21.10% |
21.29% |
21.48% |
|
Hwj chim Tolerance |
0~+3% |
||||
|
Qhov kub thiab txias ntawm qhov ntsuas kub ntawm Pmax |
-0.280% / degree |
||||
|
Qhov kub thiab txias ntawm qhov ntsuas kub ntawm Voc |
-0.250% / degree |
||||
|
Qhov kub thiab txias ua rau muaj kev cuam tshuam ntawm Isc |
+0.048% / degree |
||||
|
STC |
lradiance 1000w/m2, Cell Kub 25 degree, AM=1.5 |
||||
Hluav taws xob yam ntxwv ntawm NOCT
|
Hom Module |
JKM535M-72HL4-BDVP |
JKM540M-72HL4-BDVP |
JKM545M-72HL4-BDVP |
JKM550M-72HL4-BDVP |
JKM555M-72HL4-BDVP |
|
Lub zog siab tshaj plaws - Pmax |
398 wb |
402 wb |
405 wb |
409 wb |
413 wb |
|
Lub zog siab tshaj plaws - Vmp |
37.94V |
38.08V |
38.25V |
38.42V |
38.59V |
|
Maximum fais fab tam sim no - Imp |
10.49A |
10.55A |
10.60A |
10.65A |
10.70A |
|
Qhib-Circuit Voltage - Voc |
46.76V |
46.94V |
47.12V |
47.30V |
47.48V |
|
Short-circuit Current - Isc |
11.17A |
11.22A |
11.27A |
11.32A |
11.36A |
Bifacial Output-Rearside Power Gain
|
5% |
Lub zog siab tshaj plaws (Pmax) |
562 wb |
567 wb |
572 wb |
578 wb |
583 wb |
|
Module Efficiency STC (%) |
21.76% |
21.95% |
22.15% |
22.36% |
22.56% |
|
|
15% |
Lub zog siab tshaj plaws (Pmax) |
615 wb |
621 wb |
627 wb |
633 wb |
638 wb |
|
Module Efficiency STC (%) |
23.81% |
24.04% |
24.26% |
24.48% |
24.71% |
|
|
20% |
Lub zog siab tshaj plaws (Pmax) |
669 wb |
675 wb |
681 wb |
688 wb |
694 wb |
|
Module Efficiency STC (%) |
25.90% |
26.13% |
26.37% |
26..61% |
26.86% |
Kev khiav hauj lwm Parameter
|
Qhov siab tshaj qhov System Voltage |
DC 1500V (IEC / UL) |
|
Ua haujlwm kub |
-40 degree ~ +85 degree |
|
Maximum Series Fuse |
30A |
|
Maximum Static Load, Pem Hauv Ntej |
5400Pa (112lb/ft²) |
|
Maximum Static Load, Rov qab |
2400Pa (50Ib/ft²) |
|
NOCT |
45 ± 2 degree |
|
Xa mus. Bifacial Factor |
70±5% |
|
Hailstone Test |
25 hli Hailstone ntawm qhov ceev ntawm 23m / s |
|
Chav kawm tiv thaiv |
Chav II |
|
Kev ntsuas hluav taws |
UL hom 1 lossis 2IEC Class C |

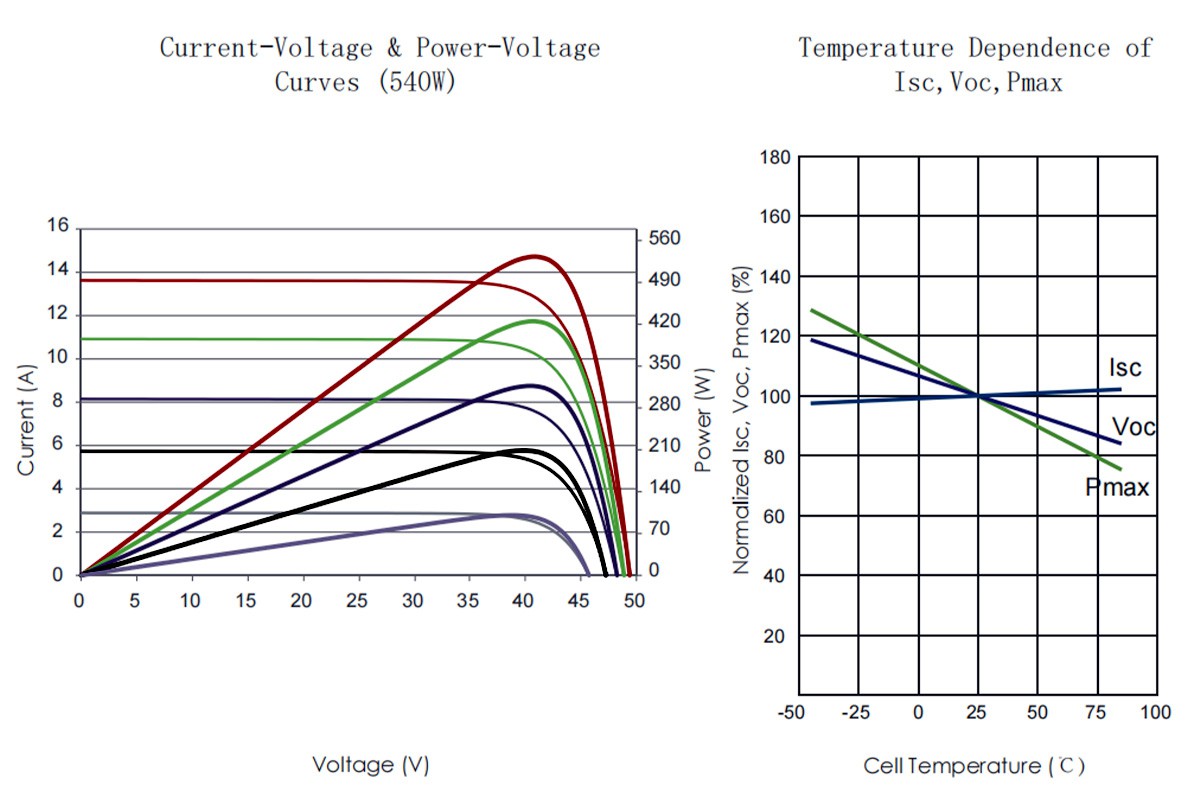

Hluav taws xob Performance
Daim ntawv thov Scenario
1. Cov tsev lag luam thiab kev lag luam
Jinko 555W hnub ci vaj huam sib luag yog qhov kev xaiv zoo tshaj plaws rau cov tsev lag luam thiab kev lag luam. Lawv muaj lub zog tso zis ntau thiab tuaj yeem tsim hluav taws xob ntau txawm tias nyob rau hauv qhov chaw qis. Qhov no ua rau lawv zoo tagnrho rau cov uas xav txo lawv cov nqi zog thiab cov pa roj carbon hneev taw.

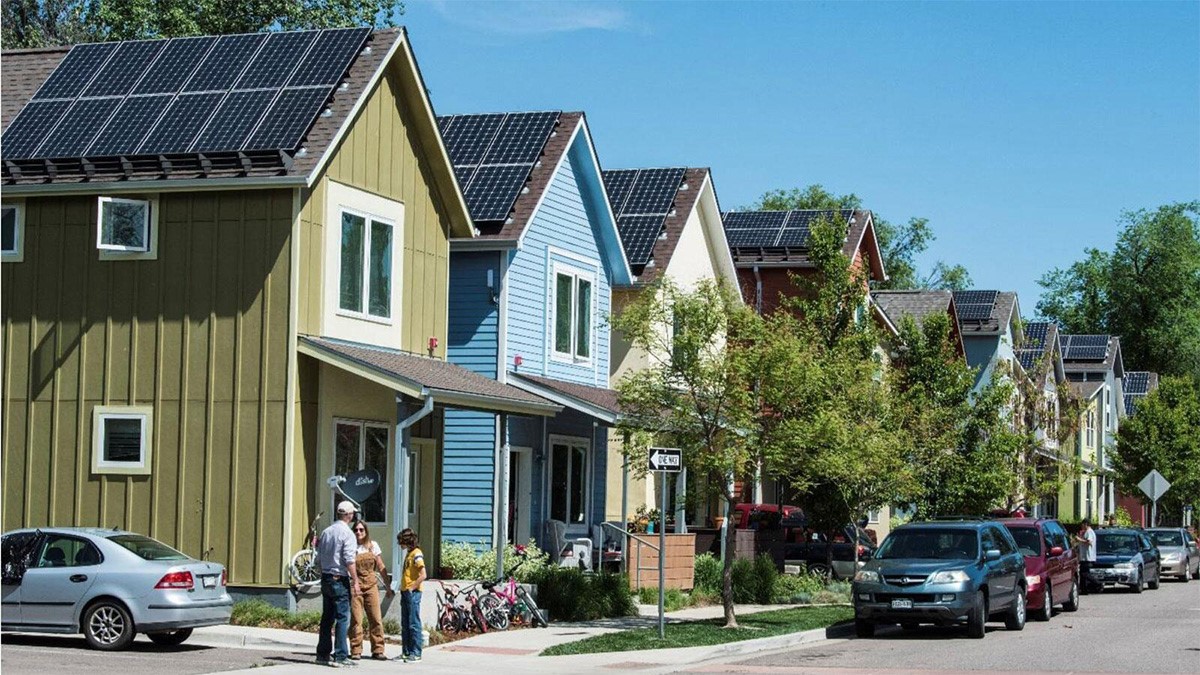

2. Cov vaj tse nyob
Cov vaj tse nyob kuj tuaj yeem tau txais txiaj ntsig los ntawm kev teeb tsa Jinko 555W hnub ci vaj huam sib luag. Cov vaj huam sib luag no muaj peev xwm ua tau zoo thiab tuaj yeem tsim hluav taws xob txaus los siv hluav taws xob hauv tsev. Tsis tas li ntawd, lawv muaj kev ruaj khov thiab tuaj yeem tiv taus huab cua hnyav, kom ntseeg tau tias lawv yuav kav ntau xyoo tom ntej.
3. Solar Farms
Jinko 555W hnub ci vaj huam sib luag yog zoo meej rau loj-scale hnub ci kev teeb tsa. Lawv cov zis hluav taws xob siab thiab kev ua tau zoo ua rau lawv yog qhov kev xaiv zoo tshaj plaws rau kev tsim hluav taws xob ntau tshaj plaws thiab txo cov nqi installation. Lawv durability thiab qis degradation tus nqi kuj txhais tau hais tias lawv yuav tsum tau kev saib xyuas tsawg tshaj plaws nyob rau hauv lawv lub neej, kom muaj ib tug zoo ib yam thiab txhim khu kev qha zog mov.
Hom kev koom tes
Jingsun Tshiab Zog zoo siab tau tsim kev koom tes ntev thiab ruaj khov nrog ntau lub tuam txhab hluav taws xob tauj dua tshiab hauv Suav teb. Peb muaj nuj nqis rau cov kev sib koom tes no vim lawv tso cai rau peb sib koom tes thiab tsim kho tshiab ua ke mus rau lub hom phiaj ntawm kev tsim kom muaj lub zog ruaj khov thiab huv si yav tom ntej.
Nrog peb cov kws tshaj lij nyob rau hauv hnub ci zog, cua zog, thiab lub zog cia kev daws teeb meem, nrog rau peb txoj kev cog lus rau kev ua tau zoo thiab cov neeg siv khoom txaus siab, peb tau dhau los ua tus neeg koom tes nrog ntau lub tuam txhab.
Peb txoj kev mob siab rau ib puag ncig thiab peb txoj kev nrhiav kev zoo tshaj plaws tau ua rau peb muaj lub koob npe nrov ua tus thawj coj hauv kev lag luam hluav taws xob tauj dua tshiab. Peb tos ntsoov yuav txuas ntxiv peb cov kev sib koom tes uas muaj txiaj ntsig zoo thiab ua rau muaj txiaj ntsig zoo rau lub ntiaj teb peb nyob.
FAQ
Q: Dab tsi yog qhov ua tau zoo ntawm Jinko 555W hnub ci vaj huam sib luag?
Q: Dab tsi yog qhov thev naus laus zis tom qab Jinko's 555W hnub ci vaj huam sib luag?
Q: Jinko 555W hnub ci vaj huam sib luag puas tuaj yeem tiv taus huab cua hnyav?
Q: Jinko 555W hnub ci vaj huam sib luag piv rau lwm lub npe li cas?
Q: Puas yog Jinko's 555W hnub ci vaj huam sib luag ib puag ncig?
