Khoom zoo

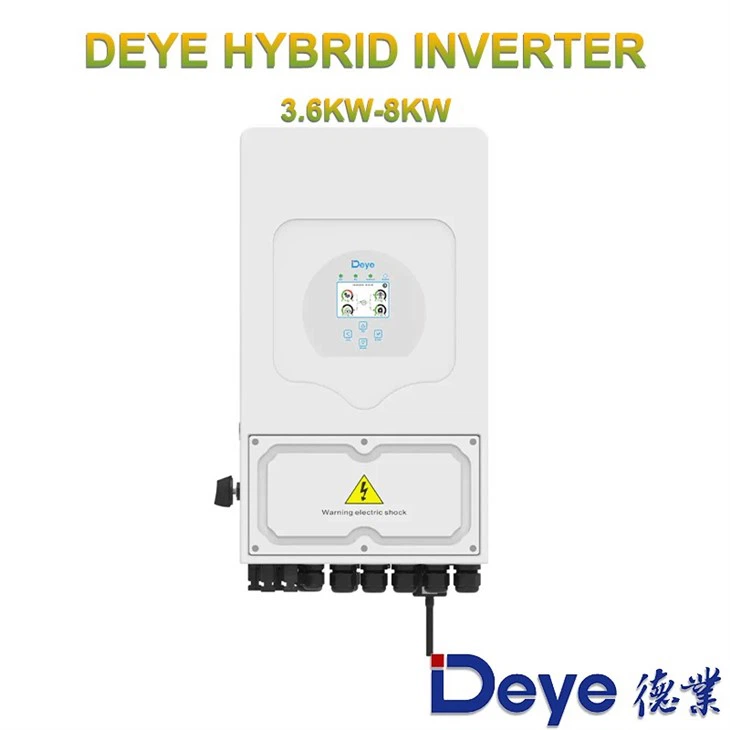

1. Siab Max. Kev them nyiaj yug / tso tawm tam sim no:Lub Deye 5KW Hybrid Inverter boasts Max. them / tso tawm tam sim no ntawm 190A, uas ua kom nws cov kev them nqi thiab kev ua haujlwm tawm. Qhov kom zoo dua no ua kom koj lub roj teeb tau them lossis tawm sai dua, uas txhais tau tias koj tuaj yeem ua kom koj lub zog muaj zog ntau tshaj plaws.
2. Flexible Charging / Discharging:Nrog rau 6 lub sijhawm sib txawv muaj rau cov roj teeb them / tso tawm, Deye 5KW Hybrid Inverter muab lub zog rau koj los kho koj lub zog. Koj tuaj yeem them thiab tawm koj lub roj teeb raws li koj lub sijhawm, kom ntseeg tau tias koj muaj lub zog thaum koj xav tau ntau tshaj.
3. Txhim khu kev xa hluav taws xob:Lub Deye 5KW Hybrid Inverter yog tsim los kav ntev thiab muab lub zog ruaj khov rau koj lub tsev lossis kev lag luam. Nws nta cov thev naus laus zis siab heev uas ua kom ntseeg tau lub zog siv hluav taws xob txhua lub sijhawm, yog li koj tsis tas yuav txhawj xeeb txog lub zog hluav taws xob tam sim lossis lub cev tsis ua haujlwm.
4. Nqi-zoo:Kev nqis peev hauv Deye 5KW Hybrid Inverter yog qhov kev xaiv zoo rau koj lub tsev lossis kev lag luam. Nws yog tsim los ua kom koj lub zog siv ntau tshaj plaws thaum ua kom koj cov nqi hluav taws xob qis. Nws siv cov thev naus laus zis siab heev uas pab txo koj cov nqi hluav taws xob ntau.
5.Environmentally Friendly:Lub Deye 5KW Hybrid Inverter yog ib puag ncig tus phooj ywg lub zog daws teeb meem. Nws yog tsim los txo koj cov pa roj carbon monoxide los ntawm kev ua kom koj lub zog siv tau zoo thiab ua kom muaj txiaj ntsig zoo ntawm koj cov peev txheej uas twb muaj lawm. Los ntawm kev xaiv Deye 5KW Hybrid Inverter, koj ua koj txoj haujlwm los tiv thaiv peb lub ntiaj teb thiab txo koj qhov cuam tshuam rau ib puag ncig.
Technical Data
|
Qauv |
SUN -3.6K -SG05LP1-EU |
SUN-5K -SG05LP1-EU |
SUN-6K -SG05LP1-EU |
SUN -7.6K -SG05LP1-EU |
SUN-8K -SG05LP1-EU |
|
Roj teeb Input Data |
|||||
|
Hom roj teeb |
Lead-acid los yog lithium-ion |
||||
|
Lub roj teeb Voltage (V) |
40-60 |
||||
|
Max. Kev them nyiaj tam sim no (A) |
90 |
120 |
135 |
190 |
190 |
|
Max. Tawm tam sim no (A) |
90 |
120 |
135 |
190 |
190 |
|
Sab nraud Temperature Sensor |
Yog lawm |
||||
|
Charging Curve |
3 Theem/Equalization |
||||
|
Charging Strategy rau Li-Ion Battery |
Kev kho tus kheej rau BMS |
||||
|
PV String Input Data |
|||||
|
Max. DC input zog (W) |
4680 |
6500 |
7800 |
9880 |
10400 |
|
Rated PV input voltage (V) |
370 (125-500) |
||||
|
Pib-up voltage (V) |
125 |
||||
|
MPPT Voltage Ntau (V) |
150-425 |
||||
|
Tag nrho Load DC Voltage Range (V) |
300-425 |
200-425 |
|||
|
PV input tam sim no (A) |
13+13 |
26+26 |
|||
|
Max. PV ISC (A) |
17+17 |
34+34 |
|||
|
No.of MPP Trackers |
2 |
||||
|
No.of Strings rau MPP Tracker |
1+1 |
2+2 |
|||
|
AC Output Data |
|||||
|
Rated AC tso zis muaj zog (W) |
3600 |
5000 |
6000 |
7600 |
8000 |
|
Max AC tso zis zog (W) |
3960 |
5500 |
6600 |
8360 |
8800 |
|
AC tso zis Rated tam sim no (A) |
16.4/15.7 |
22.7/21.7 |
27.3/26.1 |
34.5/33 |
36.4/34.8 |
|
Max. AC tam sim no (A) |
18/17.2 |
25/23.9 |
30/28.7 |
38/36.3 |
40/38.3 |
|
Max. Nruam AC Passthrough (A) |
35 |
40 |
50 |
||
|
Peak Power (tawm daim phiaj) |
2 lub sij hawm ntawm lub zog ntsuas, 10 S |
||||
|
Fais Fab Kev Kho Kom Zoo Ntau Yam |
{{0}}.8 ua rau 0.8 lagging |
||||
|
Hwj chim Factor |
1 |
||||
|
Output zaus thiab voltage |
50/60Hz; L/N/PE 220/230VAC |
||||
|
Daim phiaj hom |
Ib Theem |
||||
|
Tag nrho Harmonic Distortion (THD) |
<3% (of nominal power) |
||||
|
DC tam sim no txhaj tshuaj |
<0.5% In |
||||
|
Kev ua tau zoo |
|||||
|
Max. Kev ua tau zoo |
97.60% |
||||
|
Euro Efficiency |
96.50% |
||||
|
MPPT Efficiency |
99.90% |
||||
Them mloog
Lub Deye 5KW Hybrid Inverter yog lub cuab yeej muaj zog thiab txhim khu kev qha tsim los ua kom tau raws li lub zog xav tau ntawm cov tsev niaj hnub thiab kev lag luam. Txhawm rau kom ntseeg tau tias koj tau txais ntau tshaj ntawm koj lub inverter, muaj ob peb yam tseem ceeb uas yuav tsum nco ntsoov thaum siv nws:
1. Kev tu tsis tu ncua:Kev saib xyuas tsis tu ncua yog qhov tseem ceeb kom koj lub Deye 5KW Hybrid Inverter ua haujlwm zoo. Qhov no suav nrog kev tu thiab plua plav lub tsev, tshuaj xyuas cov kev sib txuas ntawm cov xov hlau xoob, thiab saib xyuas cov roj teeb qib.
2. Kev tu roj teeb:Lub roj teeb yog ib qho tseem ceeb ntawm koj lub inverter. Nws yog ib qho tseem ceeb kom ua tib zoo saib xyuas cov roj teeb theem, ua cov kev kuaj roj teeb tsis tu ncua thiab xyuas kom meej tias lub roj teeb raug them zoo.
3. Cov kab hluav taws xob zoo:Kev xaim kom raug yog qhov tseem ceeb rau kev nyab xeeb ntawm lub inverter thiab cov khoom siv txuas nrog. Nws yog ib qho tseem ceeb uas yuav tsum ua raws li cov chaw tsim khoom cov lus qhia thaum txuas lub inverter thiab xyuas kom meej tias cov xaim hluav taws xob ua tiav los ntawm tus kws tsim hluav taws xob tsim nyog.
4. Tsis txhob overloading:Overloading koj inverter tuaj yeem ua rau muaj kev puas tsuaj rau lub cuab yeej thiab cov khoom siv txuas nrog. Nws yog ib qho tseem ceeb tsuas yog txuas cov khoom siv uas poob rau hauv qhov kev pom zoo ntawm kev txwv ntawm lub inverter.
5. Nyeem phau ntawv qhia:Lub Deye 5KW Hybrid Inverter los nrog phau ntawv qhia. Nws yog ib qho tseem ceeb uas yuav tsum tau nyeem thiab ua raws li cov lus qhia ua tib zoo kom paub tseeb tias cov cuab yeej siv tau zoo thiab nyab xeeb. Phau ntawv muaj cov ntaub ntawv tseem ceeb txog lub cuab yeej nta, kev ua haujlwm, thiab cov lus qhia txog kev nyab xeeb.
Los ntawm kev ua raws li cov lus qhia yooj yim no, koj tuaj yeem xyuas kom meej tias koj Deye 5KW Hybrid Inverter muab kev pabcuam rau koj ntau xyoo thiab pab koj kom tau raws li koj qhov kev xav tau ntawm lub zog zoo thiab nyab xeeb.
Cov ntaub ntawv dav dav
|
Kev khiav hauj lwm kub (degree) |
-40-60℃, >45 degree Kev kub ceev |
|
Txias |
Ntse txias |
|
Suab nrov (dB) |
Tsawg dua lossis sib npaug li 30 dB |
|
Kev sib txuas lus nrog BMS |
RS485; YOG |
|
Qhov hnyav (kg) |
24 |
|
Txee Loj (WxHxD mm) |
330 × 580 × 232 (tsis suav nrog cov khoom sib txuas thiab brackets) |
|
Kev tiv thaiv qib |
IP65 |
|
Installation Style |
Phab ntsa-mounted |
|
Warranty |
5 Xyoos (10 Xyoo yeem) |
|
Daim phiaj kev cai |
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 |
|
Kev nyab xeeb EMC / Standard |
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
Kev koom tes hom
Jingsun tau koom tes nrog cov tuam txhab hnub ci inverter saum toj kawg nkaus hauv xyoo tas los no. Los ntawm cov kev sib koom tes no, Jingsun tau muaj peev xwm ua kom muaj kev txawj ntse thiab cov peev txheej ntawm qee lub tuam txhab tshiab tshaj plaws hauv kev lag luam hnub ci, thiab txhim kho tag nrho cov khoom zoo thiab kev ua tau zoo ntawm nws cov khoom.
Cov kev sib koom tes tau suav nrog kev tshawb fawb thiab kev tsim kho kev sib koom ua ke, kev sib tham txog kev sib tham, thiab txawm tias cov kev sib pauv hloov pauv mus tas li los txhim kho Jingsun txoj kev nkag siab ntawm cov qauv tshiab thiab cov thev naus laus zis hauv inverter tsim. Cov kev sib koom tes no tau ua rau Jingsun tsim kom muaj ntau yam kev ua tau zoo, txhim khu kev qha thiab pheej yig hnub ci inverters uas tuaj yeem ua tau raws li qhov xav tau ntawm ntau yam kev siv.
Jingsun kev koom tes nrog cov tuam txhab inverter saum toj kawg nkaus kuj tau pab lub tuam txhab kom sib sib zog nqus kev sib raug zoo nrog lwm tus neeg ua lag luam tseem ceeb, xws li cov neeg tsim khoom, cov neeg koom ua ke, thiab cov xa tawm. Los ntawm kev ua haujlwm ua ke nrog cov neeg koom tes no, Jingsun tau muaj peev xwm muab kev pabcuam zoo dua, kev txhawb nqa, thiab cov khoom daws teeb meem rau cov neeg siv khoom thoob plaws ntiaj teb.
FAQ
Q: Lub peev xwm ntawm Deye 5KW Hybrid Inverter yog dab tsi?
Q: Puas tuaj yeem siv Deye 5KW Hybrid Inverter?
Q: Puas yog Deye 5KW Hybrid Inverter yooj yim rau nruab?
Q: Dab tsi kev nyab xeeb nta yog Deye 5KW Hybrid Inverter muaj?
Q: Deye 5KW Hybrid Inverter yuav txuag hluav taws xob li cas?
Cim npe nrov: Tuam Tshoj 5kw hybrid inverter manufacturers, lwm tus neeg, Hoobkas
