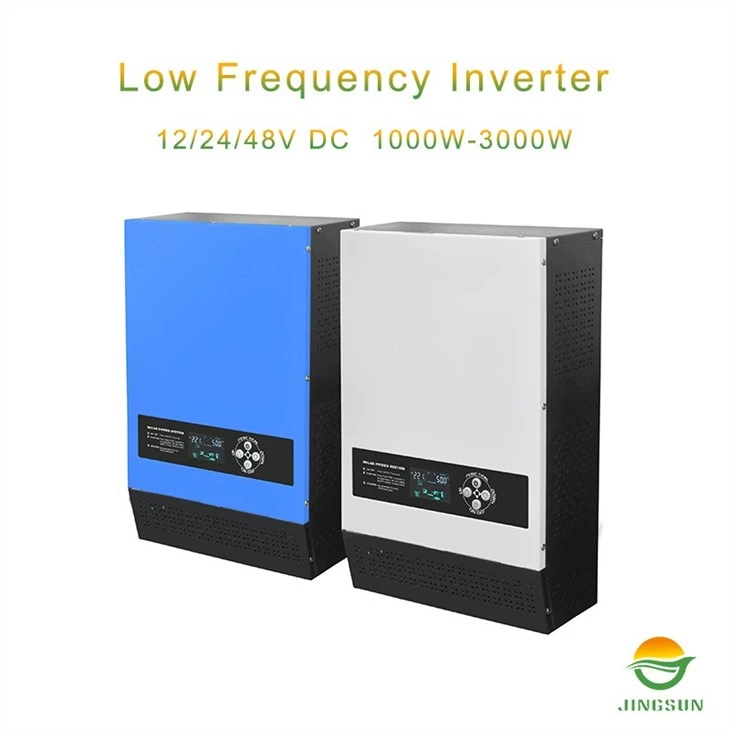

Khoom Description
- Pure Sine Wave Output:Lub tshuab hluav taws xob qis qis ua rau cov zis ntshiab sine yoj tawm, uas yog lub teeb liab huv thiab ruaj khov hluav taws xob uas tuaj yeem siv hluav taws xob rhiab heev yam tsis muaj kev cuam tshuam lossis cuam tshuam.
- Built-in Pwm Mppt Controller:Lub inverter los nrog lub built-in Pulse Width Modulation Maximum Power Point Tracking (PWM / MPPT) maub los uas ua kom zoo dua qhov kev ua tau zoo ntawm cov hnub ci vaj huam sib luag los ntawm kev kho lawv cov zis voltage kom phim cov yam ntxwv ntawm cov roj teeb.
- Optional Controller:Nws muaj peev xwm ntxiv cov maub los sab nraud rau qhov tsawg zaus inverter los txhim kho nws cov haujlwm thiab kev ua haujlwm. Qhov no tso cai rau koj los kho lub inverter raws li koj qhov kev xav tau tshwj xeeb.
- Adjustable Ac tso zis:Lub inverter tuaj yeem xa cov zis AC xws li 0 mus rau 30A, uas ua rau koj yooj yim los kho cov zis kom tau raws li qhov xav tau ntawm koj cov khoom siv.
- Kev ua tau zoo dua:Cov inverters paub txog lawv cov kev ua haujlwm siab, thiab lawv tuaj yeem hloov DC lub zog los ntawm cov roj teeb lossis lub hnub ci vaj huam sib luag rau hauv AC lub zog nrog qhov poob qis. Qhov no txhais ua cov nqi hluav taws xob qis dua thiab lub roj teeb ntev dua.
Khoom Specification
|
Rated zog |
1000W |
1500W |
2000W |
3000W |
|
|
Peak zog (20ms) |
3000 VA |
4500 VA |
6000 VA |
9 000 VA |
|
|
Pib Tsav |
1 HP |
1.5HP TSI |
2HP ib |
3HP ib |
|
|
Roj teeb Voltage |
12/24/48VDC |
24/48VDC |
|||
|
Loj (L * W * Hmm) |
500*300*140 |
||||
|
Ntim Loj (L * W * Hmm) |
565*395*225 |
||||
|
NW (kg) |
12 |
13.5 |
18 |
20 |
|
|
GW (kg) (Carton Packing) |
13.5 |
15 |
19.5 |
21.5 |
|
|
Txoj Kev Txhim Kho |
Phab ntsa-Mounted |
||||
|
Parameter |
|||||
|
Tswb |
A |
Kev ua haujlwm zoo li qub, buzzer tsis muaj suab nrov |
|||
|
B |
Buzzer suab 4 zaug ib ob thaum lub roj teeb tsis ua hauj lwm, voltage abnormality, overload tiv thaiv |
||||
|
C |
Thaum lub tshuab qhib rau thawj zaug, lub buzzer yuav hais kom 5 thaum lub tshuab zoo li qub |
||||
|
Ua hauj lwm hom |
Roj teeb Thawj / AC Thawj / Txuag Zog Hom |
||||
|
Hloov Sijhawm |
Tsawg dua los yog sib npaug li 4ms |
||||
|
Zaub |
LCD |
||||
|
Txoj Kev Thermal |
Txias kiv cua hauv kev tswj ntse |
||||
|
Kev sib txuas lus |
RS485 / APP (WIFI saib xyuas lossis GPRS saib) |
||||
|
Ib puag ncig |
Ua haujlwm kub |
Tsawg dua lossis sib npaug li 55dB |
|||
|
Cia Kub |
-10 degree ~ 40 degree |
||||
|
Suab nrov |
-15 degree ~ 60 degree |
||||
|
Qhov siab |
2000m (Ntau tshaj derating) |
||||
|
Cov av noo |
0% ~ 95%, Tsis muaj condensation |
||||
Khoom ntim
Lub Tsawg zaus Inverter los hauv cov txheej txheem pob uas yog tsim los tiv thaiv cov khoom ntawm kev puas tsuaj thaum thauj. Lub ntim yog ua los ntawm cov ntaub ntawv zoo uas muaj cov kav ntev thiab lub zog. Cov khoom yog qhwv hauv npuas qhwv kom tsis txhob khawb los yog dents. Lub ntim kuj suav nrog cov neeg siv phau ntawv uas muab cov lus qhia yuav ua li cas rau nruab thiab siv lub inverter. Lub logo thiab cov ntsiab lus ntawm cov khoom raug luam tawm ntawm lub pob kom meej thiab tseem ceeb. Lub pob yog lub teeb yuag thiab nqa tau yooj yim, ua rau nws yooj yim rau kev xa khoom thiab tuav.
Daim ntawv thov
Tsawg zaus inverters kuj tseem siv rau hauv lub hnub ci thiab cua tshuab hluav taws xob los hloov DC (Direct Current) lub zog tsim los ntawm lub hnub ci vaj huam sib luag thiab cua turbines rau hauv AC (Alternating Current) lub zog uas siv tau los ntawm tsev neeg thiab cov lag luam. Lawv pab ua kom muaj txiaj ntsig zoo ntawm cov tshuab hluav taws xob tauj dua tshiab los ntawm kev ua kom ntseeg tau tias cov khoom siv hluav taws xob AC ruaj khov thiab txhim khu kev qha.
Tsawg zaus inverters tau siv ntau dua hauv cov cua sov, qhov cua, thiab cua txias (HVAC) los tswj cov kev ceev ntawm lub cev muaj zog thiab cov kiv cua, txhim kho lub zog ntawm cov tshuab no. Lawv kuj muaj kev tswj xyuas qhov sib txawv, uas tso cai rau kev tswj kom zoo dua qhov kub thiab av noo hauv cov tsev, ua rau kev nplij siab thiab huab cua zoo dua.
FAQ
Q: Dab tsi yog qhov zoo ntawm kev siv lub tshuab hluav taws xob tsawg zaus?
Q: Kuv yuav xaiv lub hwj chim zaus Inverter li cas rau kuv daim ntawv thov?
Q: Kuv puas tuaj yeem txuas qhov Tsawg-Frequency Inverter rau daim phiaj hluav taws xob?
