Khoom zoo
- Kev ua tau zoo dua:Ntse MPT mpper siv cov maub los siv siab tshaj plaws lub zog taw tes (MPPT) thev naus laus zis los txog li 30%, uas ua rau muaj zog dua los ntawm PVels.
- Intelligent Charging:Tus maub los kho cov nqi them tsis tau raws li cov huab cua, roj teeb lub xeev-ntawm-tus nqi, thiab cov kev xav tau ntawm kev thauj khoom, ua kom lub roj teeb muaj kev nyab xeeb thiab siv tau ntev.
- Tus neeg siv-phooj ywg interface:Tus maub los los nrog cov neeg siv-phooj ywg LCD zaub uas tso cai rau kev saib xyuas yooj yim thiab tswj cov kab ke. Nws kuj tseem muaj kev saib xyuas tej thaj chaw deb thiab tswj kev xaiv.
- Kev tiv thaiv ntau yam:Tus maub los muaj cov yam ntxwv tiv thaiv uas tiv thaiv lub roj teeb thiab lub kaw lus tiv thaiv overcharging, over-discharging, short-circuiting, thiab rov qab polarity.

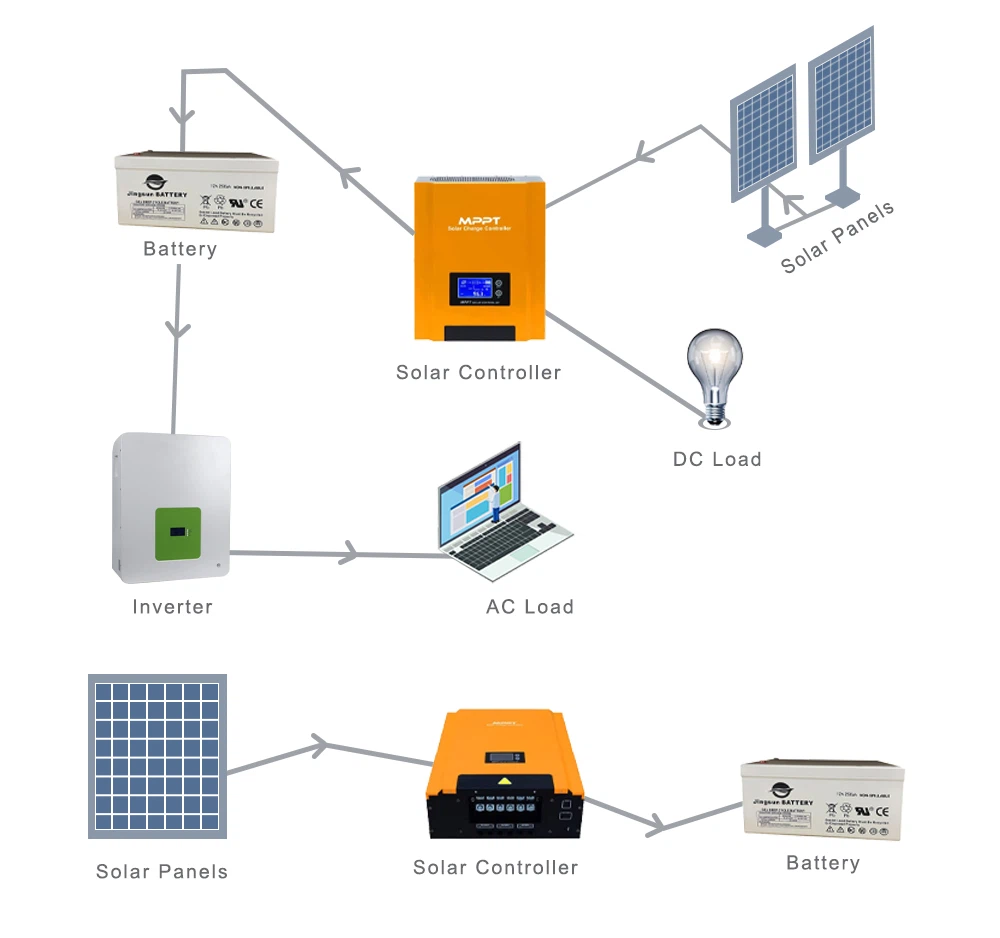

- Compatibility:Cov maub los yog sib xws nrog ntau yam ntawm PV panels thiab roj teeb hom, ua rau nws haum rau cov kev siv sib txawv, xws li off-grid solar systems, lub tsev fais fab thaub qab, thiab tej thaj chaw deb xyuas systems.

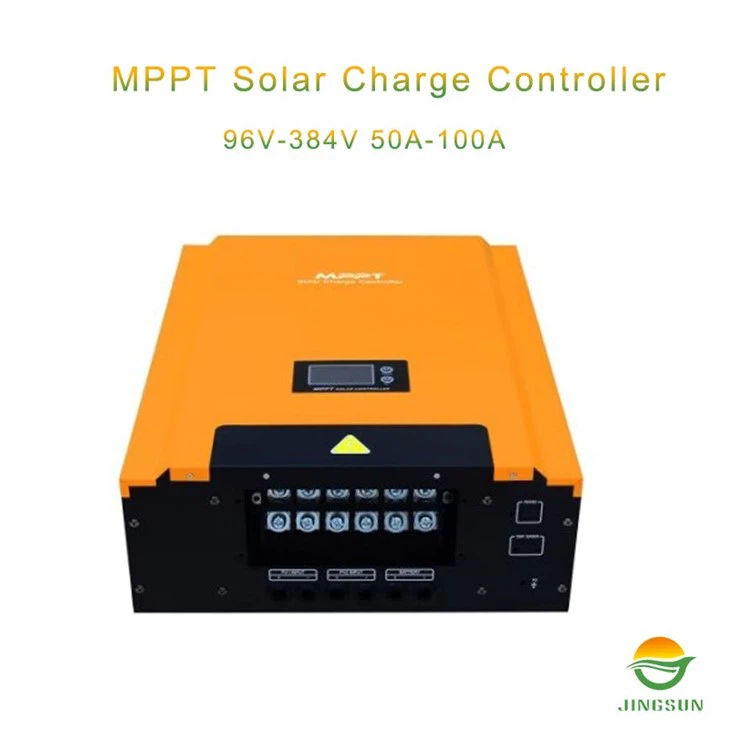

Khoom Specification
|
Qauv |
SSM-50-96 |
SSM-100-96 |
SSM-50-192 |
SSM-50-384 |
SSM-100-192 |
SSM-100-384 |
|
Rated tam sim no (A) |
50 |
100 |
50 |
50 |
100 |
100 |
|
Rated Qhov System Voltage (V) |
96 |
96 |
192/216/240 |
384 |
192/216/240 |
384 |
|
Max PV input voltage (V) |
300 |
450 |
800 |
450 |
800 |
|
|
MPPT Route Number |
1 |
2 |
1 |
2 |
||
|
Hom roj teeb |
Lead-acid Battery / Deep Cycle Battery / gel Roj teeb / thiab lwm yam |
|||||
|
Charge Voltage |
113.6V/227.2V/255.6V/284V/454.4V |
|||||
|
Charge Protection Voltage |
120V/240V/270V/300V/480V |
|||||
|
Txhawb nqa rov qab Voltage |
105.6V/211.2V/237.6V/264V/422.4V |
|||||
|
Kev tiv thaiv |
Tshaj-voltage / under-voltage / Tshaj-kub / Pv & roj teeb tiv thaiv kev thim rov qab |
|||||
|
MPPT Efficiency |
＞99% |
|||||
|
Qhov Loj (L * W * H) |
31.5 * 25 * 10.8cm |
46 * 33 * 14cm |
53 * 41 * 16.2cm |
|||
|
Loj (cm) |
36.5*31*16.4 |
50.9*40.5*21.5 |
59.8*48.7*23.9 |
|||
|
NW / Unit (kg) |
4.5 |
5.6 |
13.5 |
15 |
22.6 |
26.5 |
|
GW / Carton (kg) |
5.2 |
6.3 |
15 |
16.5 |
24.6 |
28.5 |
|
Qhov siab |
＜5000m |
|||||
|
Cov av noo |
5%-95%,/Tsis muaj condensation |
|||||
|
Kev sib txuas lus |
RS485 (Yeem) |
|||||
Daim ntawv thov
- Txoj Kev Teeb pom kev zoo:Lub Smart MPPT Charge Controller kuj tseem siv rau hauv txoj kev teeb pom kev zoo. Nws ntse kho cov hluav taws xob tso zis rau cov teeb pom kev zoo raws li muaj hnub ci zog, kom ntseeg tau cov teeb pom kev zoo thiab cov txiaj ntsig zoo.
- Telecom Towers:Jingsun MPPT Charge Controller feem ntau yog siv nyob rau hauv kev sib tham yees, qhov twg tsis muaj kev cuam tshuam lub zog yog qhov tseem ceeb. Nws pab cov pej thuam khiav tawm ntawm kab sib chaws, tshem tawm qhov xav tau ntawm fossil fuels, thiab txo qis carbon emissions.
- Agricultural Irrigation Systems:Jingsun MPPT Charge Controller kuj yog qhov zoo tagnrho rau kev ua liaj ua teb irrigation systems, ua kom muaj kev hloov pauv ntawm qhov sib txawv ntawm lub zog (xws li, hnub ci, kab sib chaws, thiab lub tshuab hluav taws xob) thiab tswj kev them cov roj teeb rau kev siv thaum lub sij hawm tshav ntuj qis. Qhov no ua kom lub zog ruaj khov thiab ruaj khov, txo tus nqi ntawm lub zog rau kev ua liaj ua teb.
FAQ
Q: Puas yog MPPT Charge Controller siv tau nrog lwm cov khoom siv hnub ci?
Q: Kuv yuav nruab thiab ua haujlwm li cas Jingsun MPPT Charge Controller?
Q: Koj ua li cas kom muaj kev nyab xeeb kev thauj mus los?
